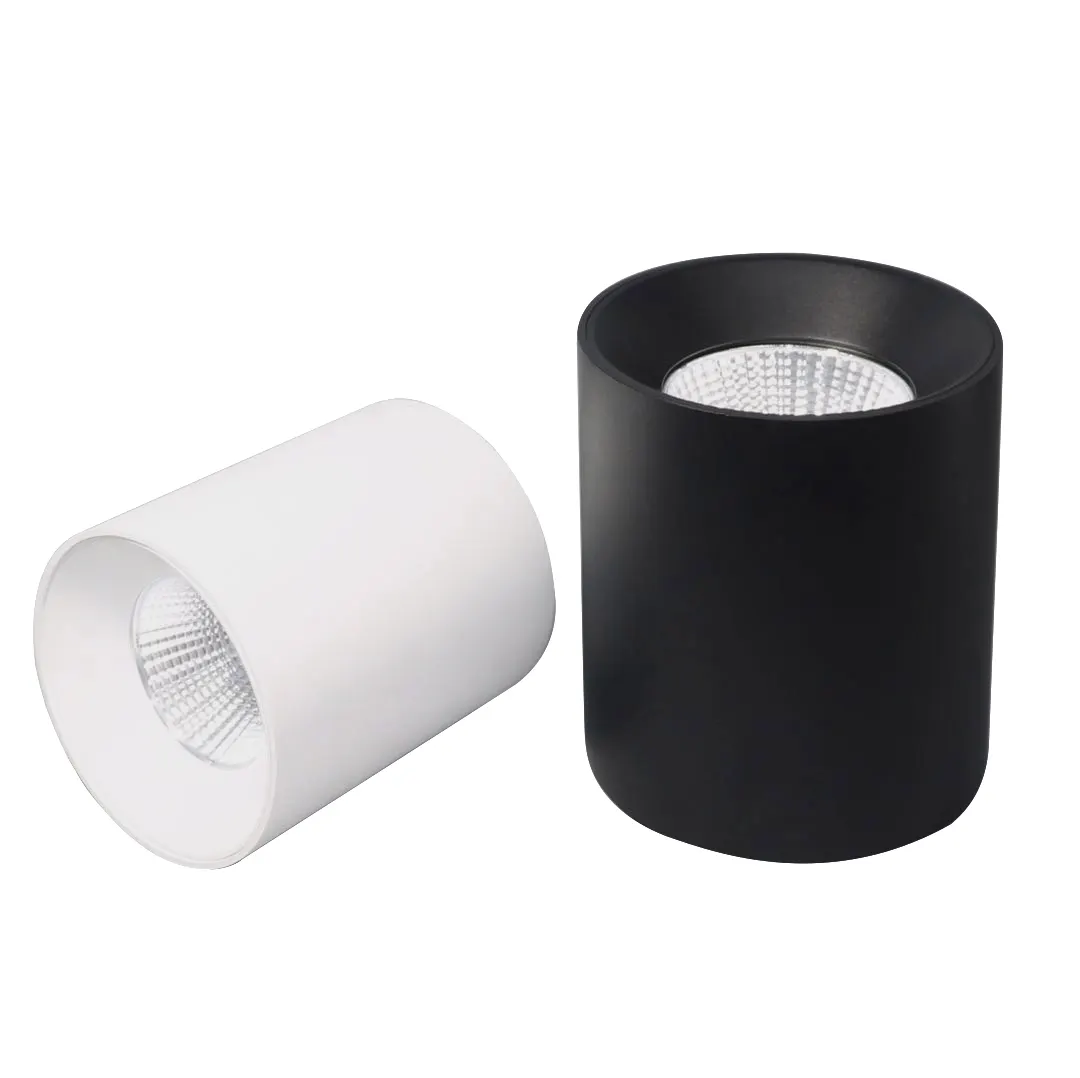

Anti Glare Surface Mounted Led Downlight for Commercial Lighting
Product Code: PS-MDL12-50W-C22
Certificate:
12-50W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-MDL12W-C22 | PS-MDL15/20W-C22 | PS-MDL25W-C22 | PS-MDL30W-C22 | PS-MDL40W-C22 | PS-MDL50W-C22 |
| Power | 12W | 15/20W | 20W | 30W | 40W | 50W |

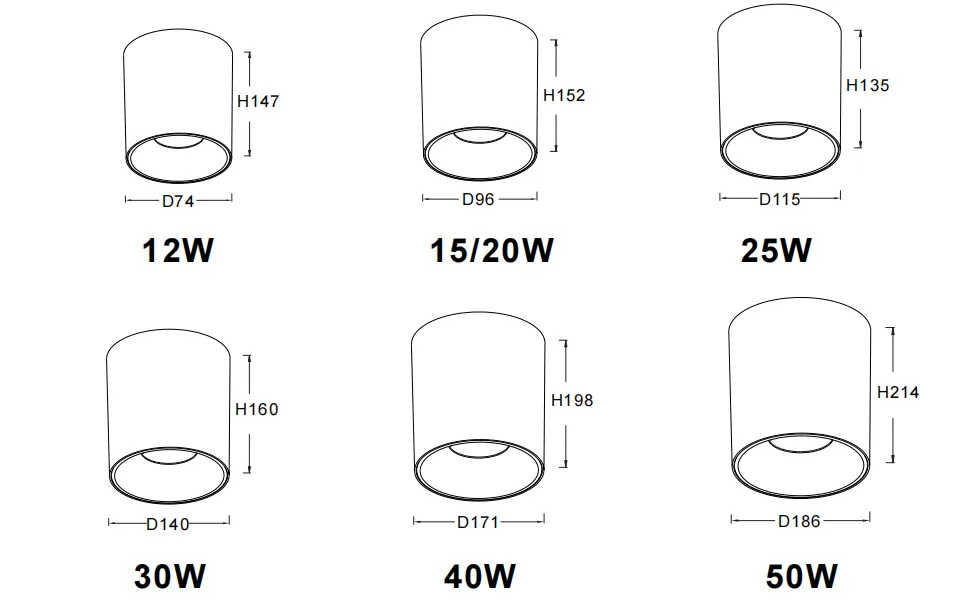

| Product size(mm) | Φ74*147 | Φ92*152 | Φ115*135 | Φ140*160 | Φ171*198 | Φ186*214 |
| Input Voltage | AC220-240V 50/60Hz | |||||
| LED Type | Citizen/Luminus/Cree COB | |||||
| Power Supply | Tridonic / Osram / Philips / Boke | |||||
| Efficacy(lm/W) | 90-100LM/W | |||||
| Beam Angle | 15/24/38/60° | |||||
| CCT (K) | 2700/3000K/4000K/5000K/5700K | |||||
| CRI | Ra80/Ra90/Ra97 | |||||
| PF | >0.9 | |||||
| SDCM | <3 | |||||
| UGR | <19 | |||||
| Material | Die-Casting Aluminum | |||||
| THD | <15 | |||||
| IP Rate | IP20 | |||||
| Input Voltage Shock | <380VAC | |||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |||||
| Switching Cycles | >100,000 switching cycles | |||||
| Withstand VoItage | 1/P-0/P:3750VAC | |||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |||||
| Life-time | Nominal life-time up to 100,000H | |||||
| Operating Temperature | -20~50°C | |||||
| Operating Humidity | 5-85% RH, non-condensing | |||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||||
| Warranty | 5 Years | |||||
| Q’TY(PCS)/carton | 50pcs | 50pcs | 30pcs | 18pcs | 12pcs | 8pcs |
| Carton Size(mm) | 490*200*535 | 500*205*545 | 595*245*425 | 420*285*505 | 540*365*400 | 420*415*425 |
| N.W.(KG/carton) | 16.2kg | 17.5kg | 18.6kg | 16.2kg | 18kg | 14.4kg |
| G.W.(KG/carton) | 18.2kg | 19.5kg | 19kg | 18.5kg | 19kg | 16kg |
Applications
- Retail Stores
High CRI and narrow beam angles highlight merchandise while improving product presentation and customer experience.
- Hotels & Hospitality
Warm color temperatures and anti-glare optics create comfortable lighting for guest rooms, corridors, and hotel lobbies.
- Offices & Commercial Buildings
Medium beam angles provide balanced illumination for meeting rooms, reception areas, workspaces, and public zones.
- Art Galleries & Museums
CRI97 and precision optics accurately illuminate artwork and exhibits while minimizing glare for visitors.
Faqs
-
Q.Why choose a surface mounted downlight instead of a recessed downlight?
A.Surface mounted downlights are perfect for concrete ceilings or buildings where recessed installation is not possible. Installation is faster and requires no ceiling cut-outs.
-
Q.Which beam angle should I choose?
A.15° is ideal for accent lighting, 24° for display lighting, 38° for task lighting, and 60° for general ambient illumination.
-
Q.Is CRI97 necessary?
A.CRI97 is recommended for museums, fashion stores, jewelry shops, cosmetics counters, and any project where accurate color reproduction is important.
-
Q.Can this fixture be installed in high-ceiling spaces?
A.Yes. The 40W and 50W models are suitable for commercial spaces with ceiling heights of approximately 4.5 to 8 meters.
-
Q.What color temperatures are available?
A.The Lyon Series offers 2700K, 3000K, 3500K, 4000K, and 5000K to suit residential, hospitality, office, and retail applications.
-
Q.Is this product suitable for international projects?
A.Yes. The product is certified with CE, CB, ENEC, SAA, CCC, RoHS, and ISO, making it suitable for projects in most global markets.
