Adjustable Direction Recessed Spotlight for Precision Display Lighting
Product Code: PS-DL10/15/20/30W-C30
Certificate:
10-30W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL10WC30 | PS-DL15WC30 | PS-DL20WC30 | ||
| Power | 10W | 15W | 20W | ||

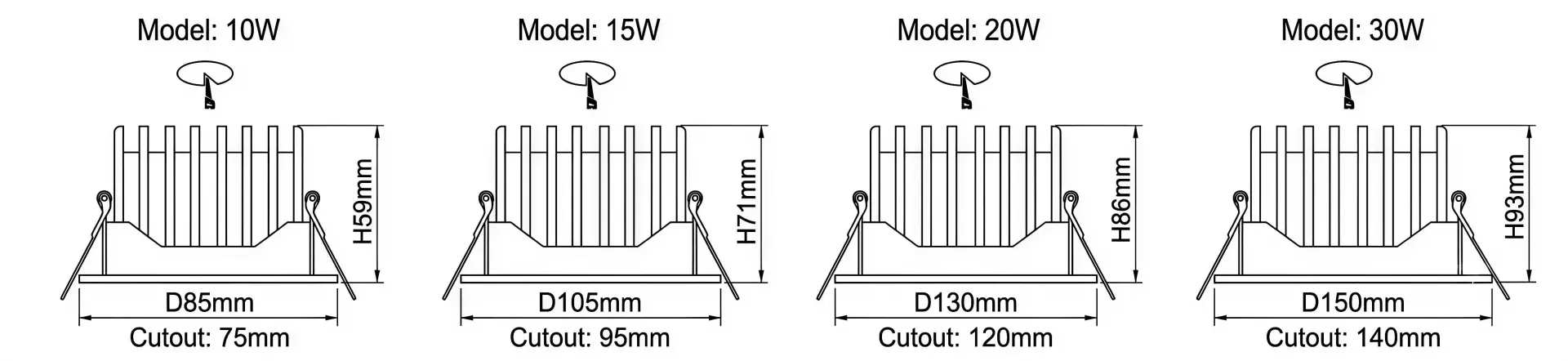

| Product size(mm) | Φ85*59mm | Φ105*71mm | Φ130*86mm | ||
| Cut-out | 75mm | 95mm | 120mm | ||
| Input Voltage | AC220-240V 50/60Hz | ||||
| LED Type | Citizen/Luminus/Cree COB | ||||
| Power Supply | Tridonic / Osram / Philips / Boke | ||||
| Efficacy(lm/W) | 90-100 LM/W | ||||
| Beam Angle | 15/30/45° | ||||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||||
| CRI | Ra80/Ra90/Ra97 | ||||
| PF | >0.9 | ||||
| SDCM | <3 | ||||
| UGR | <19 | ||||
| Material | Die-Casting Aluminum | ||||
| THD | <15 | ||||
| IP Rate | IP20 | ||||
| Input Voltage Shock | <380VAC | ||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||||
| Switching Cycles | >100,000 switching cycles | ||||
| Withstand VoItage | 1/P-0/P:3750VAC | ||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||||
| Life-time | Nominal life-time up to 100,000H | ||||
| Operating Temperature | -20~50°C | ||||
| Operating Humidity | 5-85% RH, non-condensing | ||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||
| Warranty | 5 Years | ||||
| Q’TY(PCS)/carton | 24pcs | 18pcs | 12pcs | ||
| NW(KG/carton) | 9.6kg | 12.6kg | 12kg | ||
| Carton Size(mm) | 400*300*380mm | 460*340*370mm | 5200*380*300mm | ||
| GW(KG/carton) | 11.6kg | 14.6kg | 14kg | ||
Applications
- Retail Store Lighting
Highlights clothing, products, and display areas with precise beam control. Ideal for fashion stores, boutiques, supermarkets, and brand shops.
- Gallery & Exhibition Lighting
Creates focused lighting effects for artworks, sculptures, and exhibits. High CRI options improve color accuracy and visual quality.
- Hotel & Restaurant Lighting
Provides comfortable accent lighting for dining tables, walls, and decorative areas. Adjustable direction supports flexible interior layouts.
- Showroom & Commercial Space Lighting
Suitable for car showrooms, exhibition halls, and premium commercial spaces. Adjustable spotlight direction adapts to changing displays.
Faqs
-
Q.Can the spotlight direction be adjusted after installation?
A.Yes. The Marcia Series features a tiltable eyeball design, allowing users to manually adjust the lighting direction after installation.
-
Q.Is this product suitable for general lighting?
A.It is mainly designed for accent and display lighting rather than large-area uniform lighting.
-
Q.What is the difference between 15°, 30°, and 45° beam angles?
A.15° provides a narrow spotlight effect, 30° is suitable for general accent lighting, and 45° offers wider coverage.
-
Q.Can I use this spotlight for retail product displays?
A.Yes. The reflector optical system and high CRI options make it suitable for clothing, jewelry, and product display lighting.
-
Q.What CRI options are available?
A.The product supports CRI 80Ra, 90Ra, and 97Ra options for different color rendering requirements.
-
Q.Does the lamp require a special installation method?
A.No. It uses spring clip mounting for quick recessed installation without complicated tools.
-
Q.Can this spotlight replace a fixed downlight?
A.Yes, when directional lighting is required. It provides more flexibility than standard fixed downlights.
