IP65 Commercial Led Downlight With 15-55W for Hospitality & Retail Lighting
Product Code: PS-DL12-55W-C49
Certificate:
12-55W
Power
80/90/97Ra
CRI
100-110lm/w
Lumen Efficiency
Bridgelux/CITIZEN
LED Chip
Osram / Tridonic / BOKE
LED Driver
Specification Table
| Model | PS-DL12WC49 | PS-DL15/20WC49 | PS-DL25/30WC49 | PS-DL30/35WC49 | PS-DL35/40WC49 | PS-DL40/45WC49 | PS-DL50/55WC49 | |||
| Power | 12W | 15/20W | 25/30W | 30/35W | 35/40W | 40/45 | 50/55 | |||

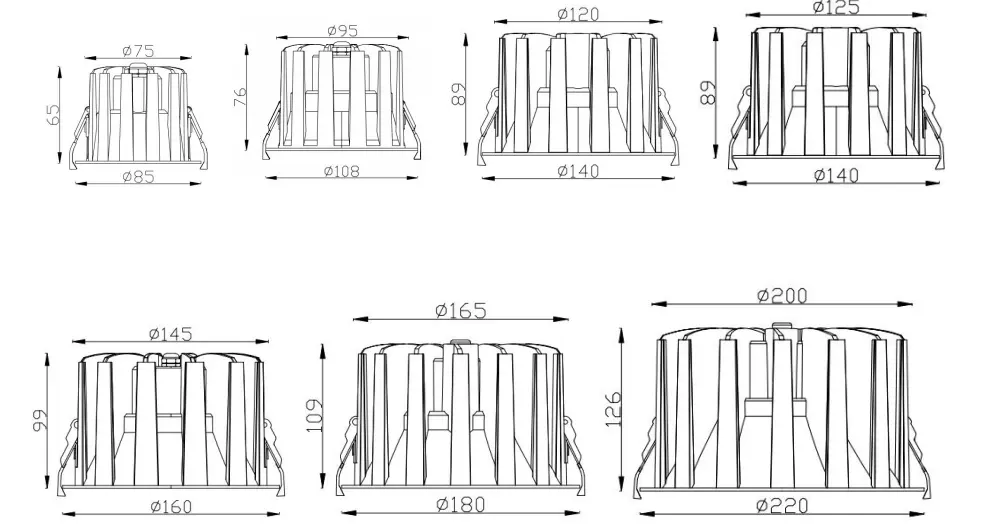

| Product size(mm) | Φ85*65mm | Φ108*76mm | Φ140*89mm | Φ140*89mm | Φ160*99mm | Φ180*109mm | Φ220*126mm | |||
| Input Voltage | AC220-240V 50/60Hz | |||||||||
| LED Type | Bridgelux/Citizen/Cree COB | |||||||||
| Power Supply | Tridonic / Osram / Philips / Boke | |||||||||
| Efficacy(lm/W) | 100-110LM/W | |||||||||
| Beam Angle | 60° / 90° | |||||||||
| CCT (K) | 2700/3000K/3500K/4000K/5000K | |||||||||
| CRI | Ra80/Ra90/Ra97 | |||||||||
| PF | >0.9 | |||||||||
| SDCM | <3 | |||||||||
| UGR | <19 | |||||||||
| Material | Die-Casting Aluminum | |||||||||
| THD | <15 | |||||||||
| IP Rate | IP65 | |||||||||
| Input Voltage Shock | <380VAC | |||||||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |||||||||
| Switching Cycles | >100,000 switching cycles | |||||||||
| Withstand VoItage | 1/P-0/P:3750VAC | |||||||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |||||||||
| Life-time | Nominal life-time up to 100,000H | |||||||||
| Operating Temperature | -20~50°C | |||||||||
| Operating Humidity | 5-85% RH, non-condensing | |||||||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |||||||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |||||||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||||||||
| Warranty | 5 Years | |||||||||
| QTY | 24pcs | 18pcs | 12pcs | 12pcs | 8pcs | 8pcs | 8pcs | |||
| CTN Size | 540*430*340mm | 460*460*360mm | 560*410*400mm | 610*450*430mm | 500*500*430mm | 500*500*430mm | 500*500*430mm | |||
| N.W. | 14.9kg | 15.2kg | 13.6kg | 17.2kg | 14.4kg | 15.6kg | 17.8kg | |||
| G.W. | 16.9kg | 17.2kg | 15.6kg | 19.2kg | 16.4kg | 16.6kg | 17.9kg | |||
Applications
- Hospitality Lighting
Perfect for hotels, resorts, restaurants, guest rooms, bathrooms and spa facilities where comfortable, glare-free lighting and moisture resistance are essential.
- Retail & Shopping Centers
Ideal for boutiques, supermarkets, luxury stores and shopping malls, providing excellent color rendering and flexible beam angles to highlight merchandise.
- Office & Public Buildings
Suitable for offices, meeting rooms, schools, hospitals, airports and metro stations with reliable, energy-efficient general lighting.
- Semi-Outdoor & Humid Areas
Designed for covered entrances, building soffits, public washrooms, changing rooms and other damp or semi-outdoor environments thanks to its IP65 protection.
Faqs
-
Q.What applications is the Mars Series LED Downlight suitable for?
A.It is ideal for hotels, retail stores, shopping malls, offices, museums, hospitals, restaurants, airports, public buildings, and other commercial spaces requiring high-quality recessed lighting.
-
Q.Why choose an IP65 LED downlight?
A.An IP65 rating protects the luminaire against dust and water jets, making it suitable for humid environments such as bathrooms, spas, covered outdoor areas, and public washrooms.
-
Q.What beam angles are available?
A.The Mars Series offers 15°, 24°, 38°, and 60° beam angles to support accent lighting, display lighting, and general illumination.
-
Q.Which CRI option should I choose?
A.CRI 80 is suitable for general commercial lighting, CRI 90 is recommended for premium retail and hospitality projects, while CRI 97 is ideal for luxury stores, museums, galleries, and automotive showrooms where accurate color reproduction is essential.
-
Q.What color temperatures are available?
A.The downlight is available in 2700K, 3000K, 3500K, 4000K, and 5000K to suit different lighting environments and project requirements.
-
Q.Can one product family cover different ceiling heights?
A.Yes. With wattages ranging from 12W to 55W and multiple cutout sizes, the Mars Series can be used in low, medium, and high-ceiling commercial spaces while maintaining a consistent appearance.
-
Q.How does the anti-glare design improve lighting quality?
A.The deep recessed reflector reduces direct glare, improves visual comfort, and creates a clean, professional lighting effect, making it ideal for hospitality, retail, and office environments.
-
Q.Why choose the Mars Series over standard LED downlights?
A.The Mars Series combines IP65 protection, deep anti-glare optics, multiple wattages, flexible beam angles, high CRI options, and international certifications, making it a comprehensive solution for professional commercial lighting projects.
