Dip Switch Track Panel Light With Adjustable Power 35-70W
Product Code: PS-TL35/40/50/60/70W-P193
Certificate:
35-70W
Power
83/92Ra
CRI
140-150 lm/w
Lumen Efficiency
SMD2835
LED Chip
Tridonic / Osram / Boke
LED Driver
Specification Table
| Model | PS-TL35/40/50/60/70W-P193 |
| Power | 35/40/50/60/70W (DIP Switch) |

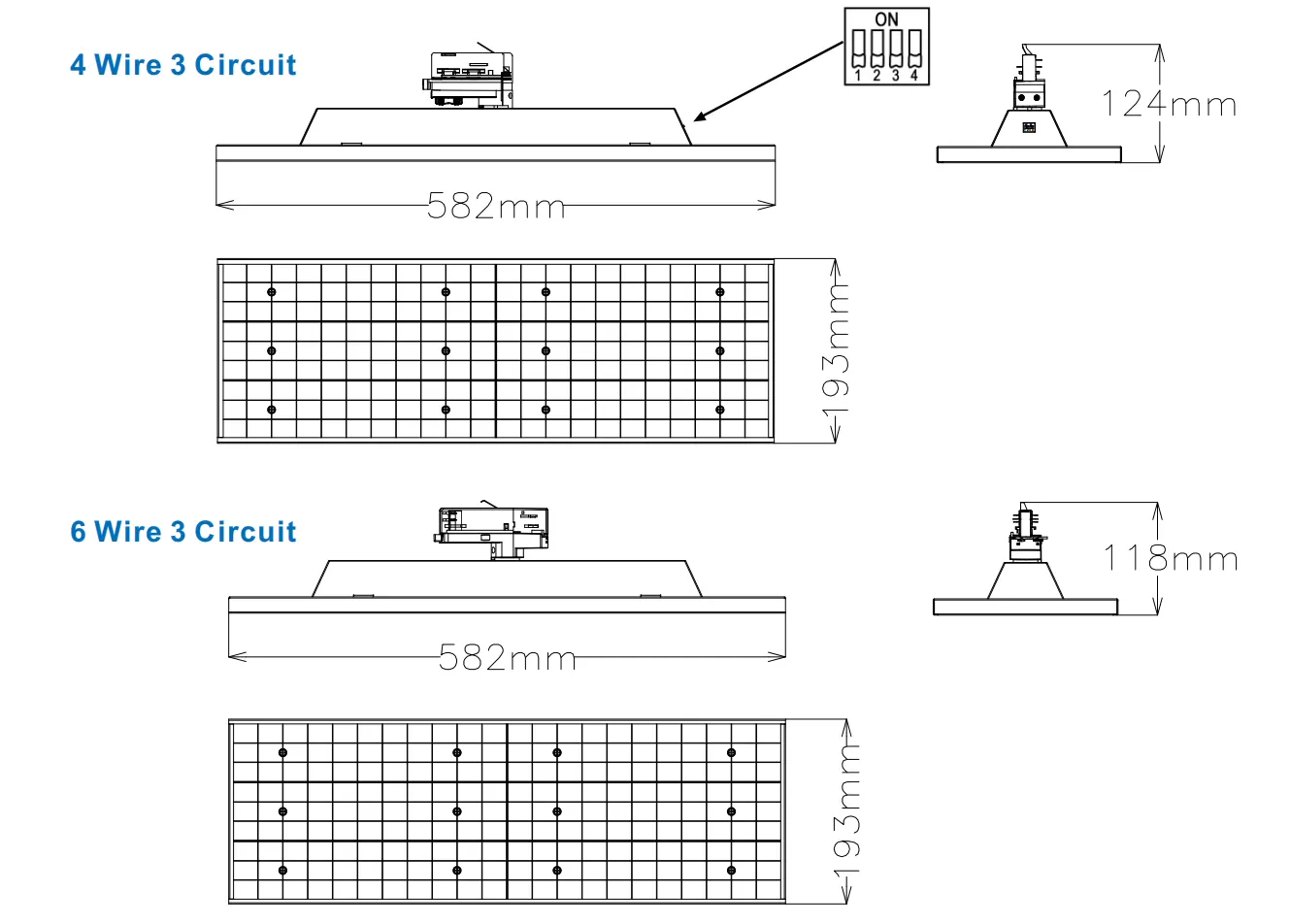

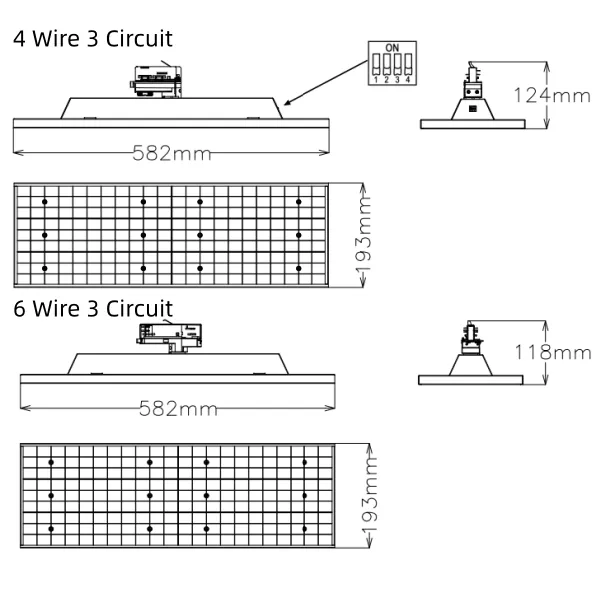

| Product size(mm) | L582*W193*H124mm(4Wire) / L582*W193*H118mm(6Wire) |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | Lumileds/Osram SMD 2835 |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 140-150LM/W |
| Beam Angle | 30° / 60° / 90° |
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | Ra83/Ra92 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <15 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY / CTN Size | 8 PCS / 635*314*324 MM |
| N.W. / G.W. | 16 KG / 18.5 KG |
Applications
- Supermarkets
Provide bright, uniform lighting for aisles and shelves while reducing energy costs.
- Retail & Fashion Stores
Enhance product colors and create a comfortable shopping environment with anti-glare lighting.
- Office & Meeting Rooms
Deliver soft, flicker-free illumination that improves visual comfort and workplace productivity.
- Car Showrooms
Highlight vehicle details with high CRI and flexible beam angles for premium display lighting.
Faqs
-
Q.Why choose a DIP switch adjustable track panel light?
A.The DIP switch allows one fixture to cover five different power levels, reducing inventory and simplifying project planning.
-
Q.Can I change the power after installation?
A.Yes. The power can be adjusted through the built-in DIP switch whenever project lighting requirements change.
-
Q.Which dimming and control systems are supported?
A.The fixture supports On-Off, Triac, 0-10V, DALI, Bluetooth (BLE), 2.4G, and Zigbee control options.
-
Q.Is this light suitable for retail applications?
A.Yes. High efficacy, optional CRI 90, anti-glare optics, and multiple beam angles make it ideal for retail and commercial display lighting.
-
Q.Which track systems are compatible?
A.It is compatible with both 4-wire 3-circuit and 6-wire 3-circuit track systems, including major international track standards.
-
Q.What warranty is provided?
A.The luminaire is rated for over 100,000 hours of operation and includes a 5-year warranty.
