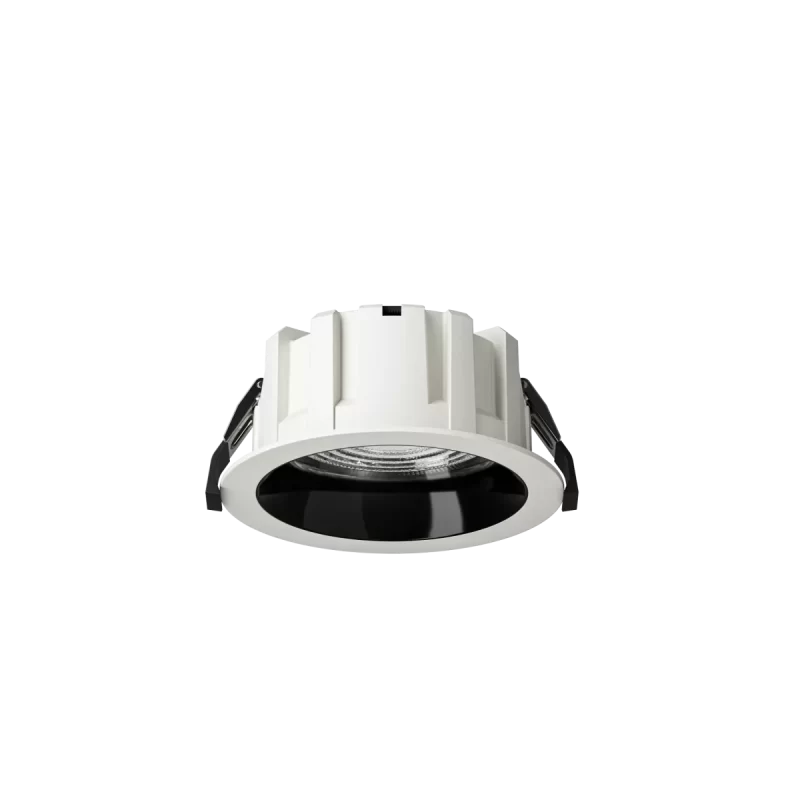

High Efficiency Commercial Led Downlight for Office & Retail Lighting 12-45W
Product Code: PS-DL15-45WA18
Certificate:
15-45W
Power
80 / 90 / 97Ra
CRI
100-150lm/w
Lumen Efficiency
Bridgelux / CITIZEN
LED Chip
Osram / Tridonic / BOKE
LED Driver
Specification Table
| Model | PS-DL12/15/20W-A18 | PS-DL25/30/35W-A18 | PS-DL40/45W-A18 |
|||
| Power | 12 W | 15/20 W | 25/30 W | 30/35 W | 35/40 W | 40/45 W |

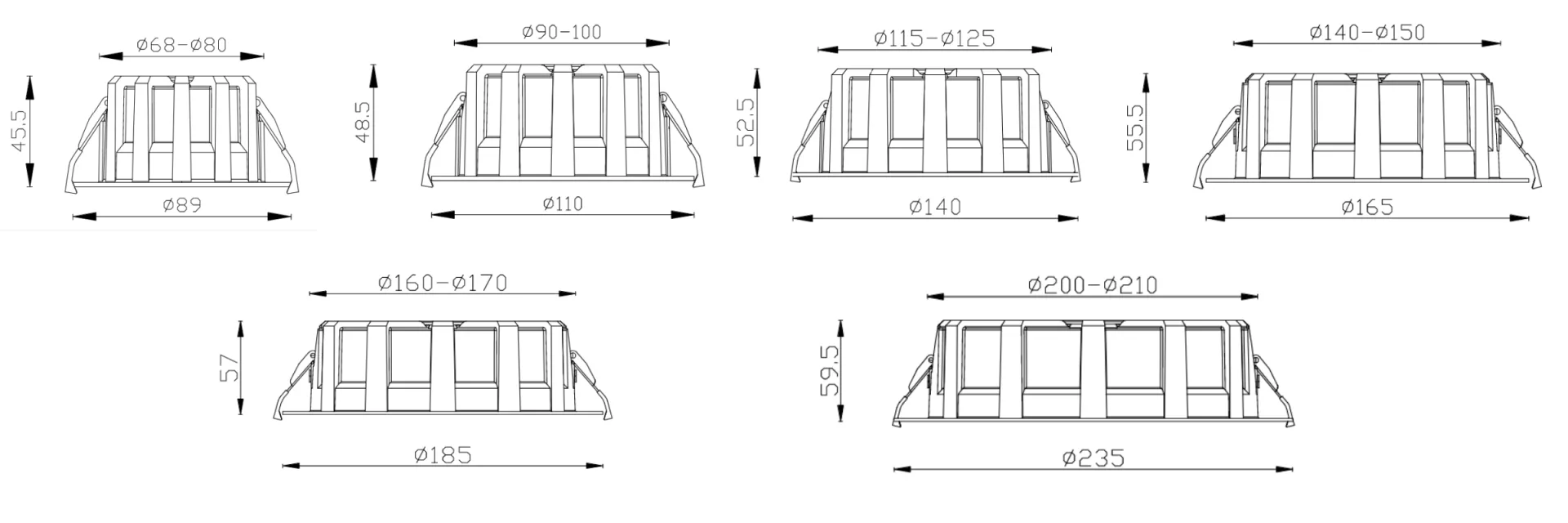

| Product size(mm) | D89*H46 | D110*H49 | D140*H53 | D165*H56 | D158*H57 | D236*H60 |
| Cut-out (mm) | 70-80 | 90-100 | 120 | 140 | 160 | 205-215 |
| Input Voltage | AC220-240V 50/60Hz | |||||
| LED Type | Bridgelux/Citizen/Cree COB | |||||
| Power Supply | Tridonic / Osram / Philips / Boke | |||||
| Efficacy(lm/W) | 100-150 LM/W | |||||
| Beam Angle | 60° / 90° | |||||
| CCT (K) | 2700/3000K/3500K/4000K/5000KK | |||||
| CRI | Ra80/Ra90/Ra97 | |||||
| PF | >0.9 | |||||
| SDCM | <3 | |||||
| UGR | <19 | |||||
| Material | Die-Casting Aluminum | |||||
| THD | <15 | |||||
| IP Rate | IP20 | |||||
| Input Voltage Shock | <380VAC | |||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |||||
| Switching Cycles | >100,000 switching cycles | |||||
| Withstand VoItage | 1/P-0/P:3750VAC | |||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |||||
| Life-time | Nominal life-time up to 100,000H | |||||
| Operating Temperature | -20~50°C | |||||
| Operating Humidity | 5-85% RH, non-condensing | |||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||||
| Warranty | 5 Years | |||||
| QTY | 24pcs | 18pcs | 18pcs | 12pcs | 12pcs | 10pcs |
| CTN Size | 540*430*340mm | 460*460*360mm | 460*460*360mm | 560*410*400mm | 560*410*400mm | 560*410*400mm |
| N.W. | 14.9kg | 15.2kg | 15.2kg | 13.6kg | 13.6kg | 13.6kg |
| G.W. | 16.9kg | 17.2kg | 17.2kg | 15.6kg | 15.6kg | 15.6kg |
Applications
- Office Lighting
Provides comfortable, glare-controlled illumination that improves employee productivity and reduces visual fatigue.
- Hotel Lighting
Creates a warm and welcoming atmosphere for guest rooms, corridors, lobbies, and public areas with flexible CCT options.
- Retail & Shopping Mall
High CRI and multiple beam angles highlight merchandise while delivering uniform ambient lighting throughout the store.
- Public & Commercial Buildings
Suitable for airports, schools, hospitals, exhibition halls, supermarkets, and other large commercial facilities requiring efficient, reliable lighting.
Faqs
-
Q.What wattage should I choose for my ceiling height?
A.For ceilings between 2.5–3.2 m, 12–20W is recommended. For 3.2–4.5 m, 25–35W is ideal. For ceilings above 4.5 m, choose 35–45W.
-
Q.What is the difference between the 60° and 90° beam angles?
A.A 60° beam creates focused lighting for displays and accent areas, while a 90° beam provides wider, more uniform general illumination.
-
Q.Which CRI option is suitable for retail projects?
A.CRI 90 is recommended for most retail environments, while CRI 97 is ideal for luxury stores, museums, jewelry shops, and fashion boutiques where color accuracy is critical.
-
Q.Can this downlight be used for renovation projects?
A.Yes. The Fan Series offers multiple cutout sizes from 70mm to 215mm, making it suitable for replacing existing recessed downlights.
-
Q.What international certifications does this product have?
A.The product is certified with CE, CB, ENEC, SAA, CCC, TÜV Rheinland, ISO, and RoHS, meeting the requirements of global commercial lighting markets.
-
Q.Is this downlight suitable for energy-saving commercial projects?
A.Yes. With system efficacy up to 150 lm/W, it significantly reduces power consumption and long-term operating costs.
