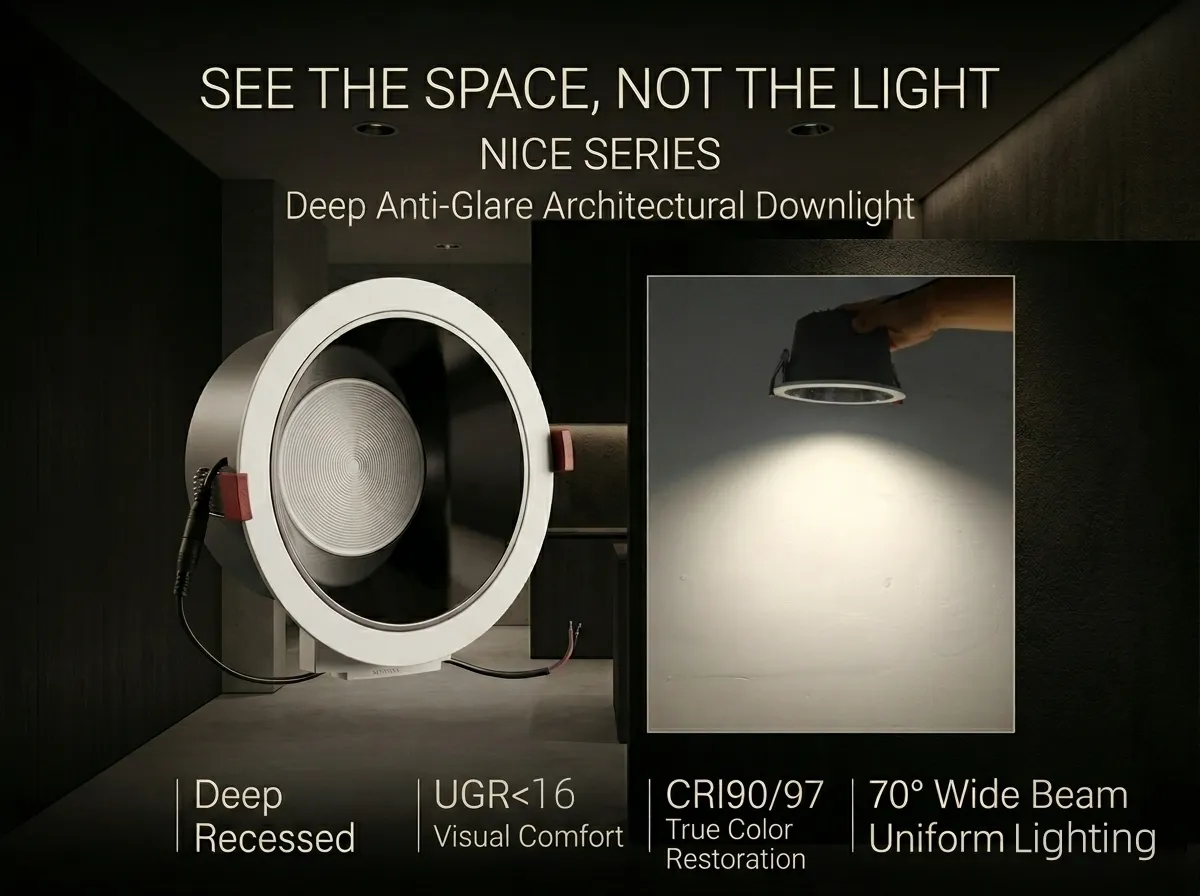

Deep Anti Glare Led Downlight for Commercial Recessed Lighting
Product Code: PS-DL10/12/15/20/30W-A9
Certificate:
10-30 W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Lumileds/Osram SMD 2835
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL10WA9 | PS-DL12WA9 | PS-DL15WA9 | PS-DL20/30WA9 | PS-DL30WA9 | |
| Power | 10W | 12W | 15W | 20/30W | 30W | |

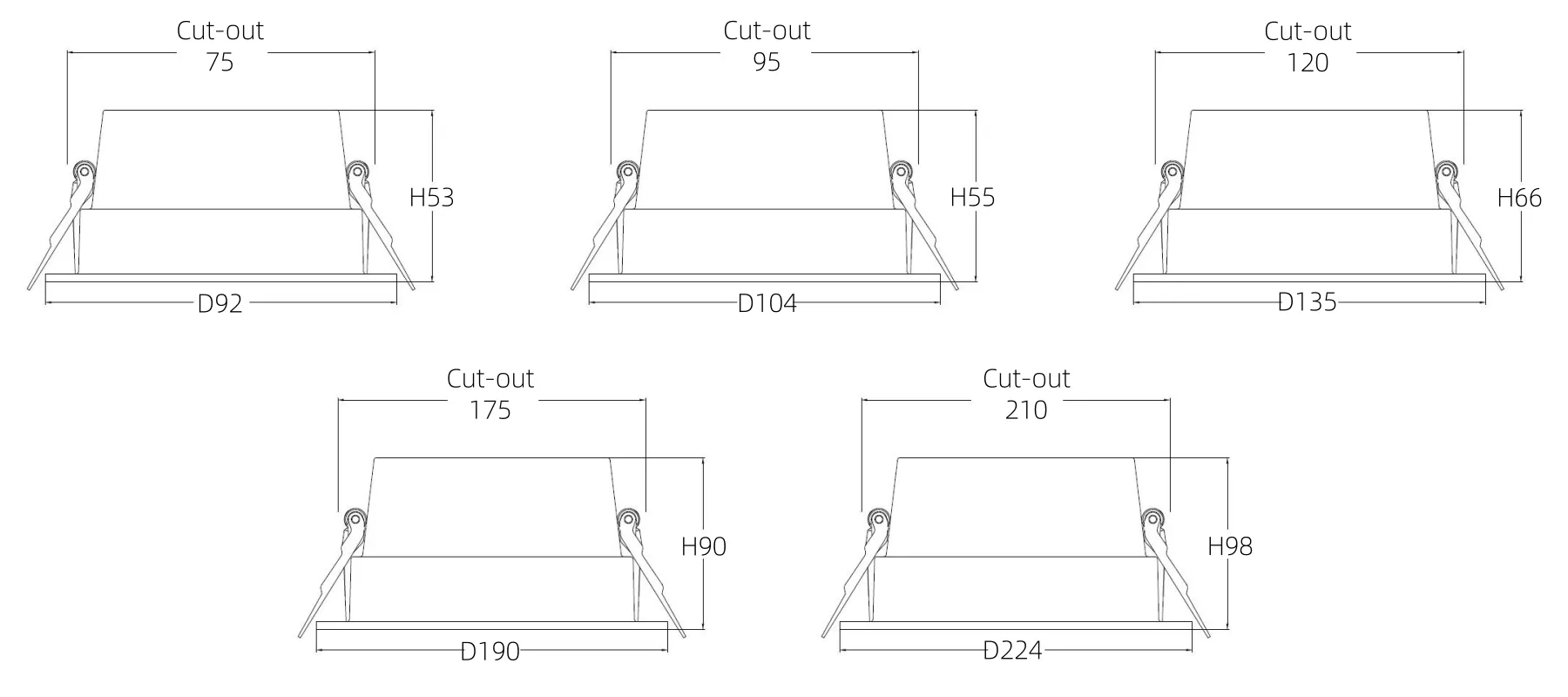

| Product size(mm) | Φ92mm*H53mm | Φ104mm*H55mm | Φ135mm*H66mm | Φ190mm*H90mm | Φ224mm*H98mm | |
| Cut Hole Size(mm) | 75mm | 95mm | 120mm | 175mm | 210mm | |
| Input Voltage | AC220-240V 50/60Hz | |||||
| LED Type | SMD 2835 | |||||
| Power Supply | Flicker Free Driver | |||||
| Efficacy(lm/W) | 90-100 lm/W | |||||
| Beam Angle | 70° | |||||
| CCT (K) | 3000K/4000K/5000K | |||||
| CRI | 83/92Ra | |||||
| PF | >0.9 | |||||
| SDCM | <3 | |||||
| UGR | <16 | |||||
| Material | Die-Casting Aluminum | |||||
| THD | <15 | |||||
| IP Rate | IP20 | |||||
| Input Voltage Shock | <380VAC | |||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |||||
| Switching Cycles | >100,000 switching cycles | |||||
| Withstand VoItage | 1/P-0/P:3750VAC | |||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |||||
| Life-time | Nominal life-time up to 100,000H | |||||
| Operating Temperature | -20~50°C | |||||
| Operating Humidity | 5-85% RH, non-condensing | |||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||||
| Warranty | 5 Years | |||||
Applications
- Office Lighting
UGR<16 reduces eye fatigue and creates a comfortable working environment for employees.
- Hotel & Hospitality
Soft, glare-free illumination enhances guest comfort in lobbies, corridors, and guestrooms.
- Retail & Shopping Mall
High CRI highlights product colors and improves the overall shopping experience.
- Museum & Gallery
Accurate color rendering and low glare protect visual comfort while showcasing artwork.
Faqs
-
Q.What makes the Nice Series suitable for office lighting?
A.Yes. We provide a 3-5 year warraIts deep recessed reflector achieves UGR<16, reducing glare and improving visual comfort during long working hours.nty on all of our goods.
-
Q.Which CRI options are available?
A.The downlight is available in CRI 80, CRI 90, and CRI 97 to meet different application requirements.
-
Q.What color temperatures can I choose?
A.Available options include 2700K, 3000K, 3500K, 4000K, and 5000K.
-
Q.Is this downlight suitable for retail lighting?
A.Yes. High CRI options accurately reproduce product colors, making merchandise more attractive.
-
Q.What wattages are available?
A.The Nice Series is offered in 10W, 12W, 15W, 20W, and 30W configurations.
-
Q.Can this downlight be used in hotels and museums?
A.Yes. Its low-glare design and high color rendering make it ideal for hotels, museums, galleries, and other premium commercial environments.
-
Q.Does it support different ceiling cutout sizes?
A.Yes. Multiple housing sizes are available to match different ceiling openings and project requirements.
-
Q.How does the deep recessed design improve lighting quality?
A.The recessed light source hides direct LED visibility, significantly reducing glare while delivering comfortable and uniform illumination.
