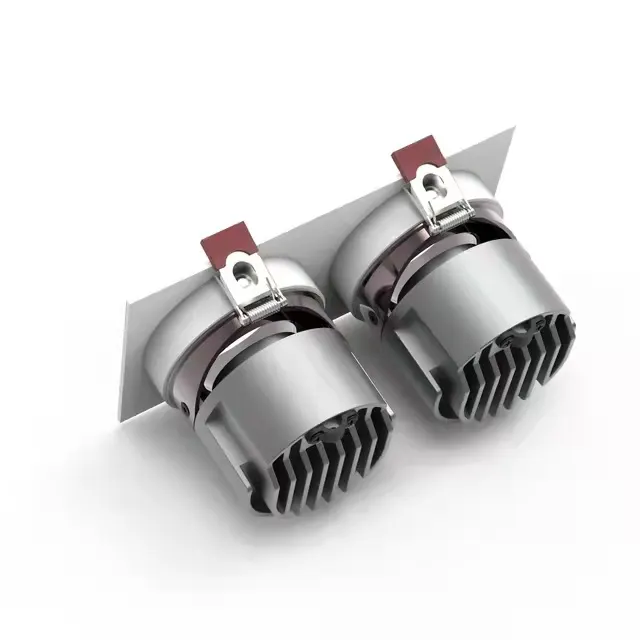

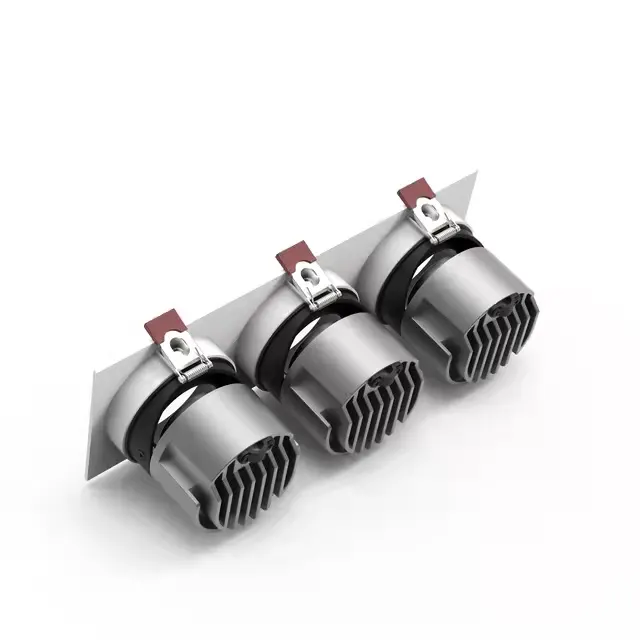

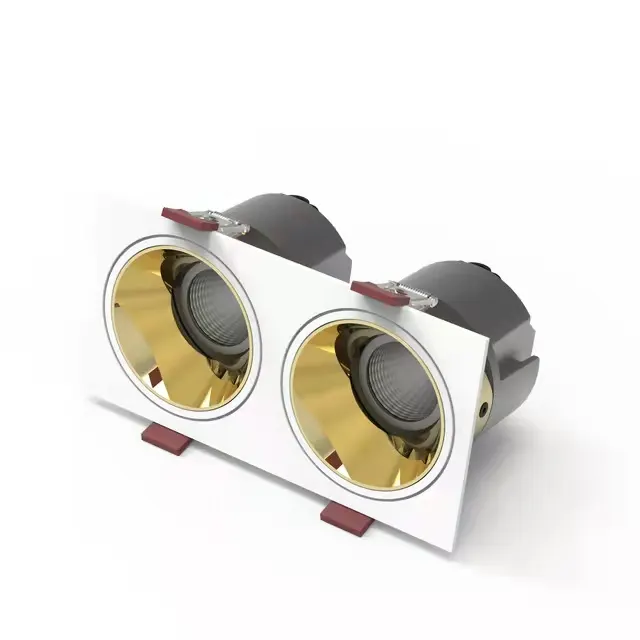

Adjustable Square Multi Head Led Downlight With Reflector Optics for Accent Lighting
Product Code: PS-DL1/2/3*10W-C36
Certificate:
1/2/3*10W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL10WC36 | PS-DL2*10WC36 | PS-DL3*10WC36 | ||
| Power | 10W | 2*10W | 3*10W | ||

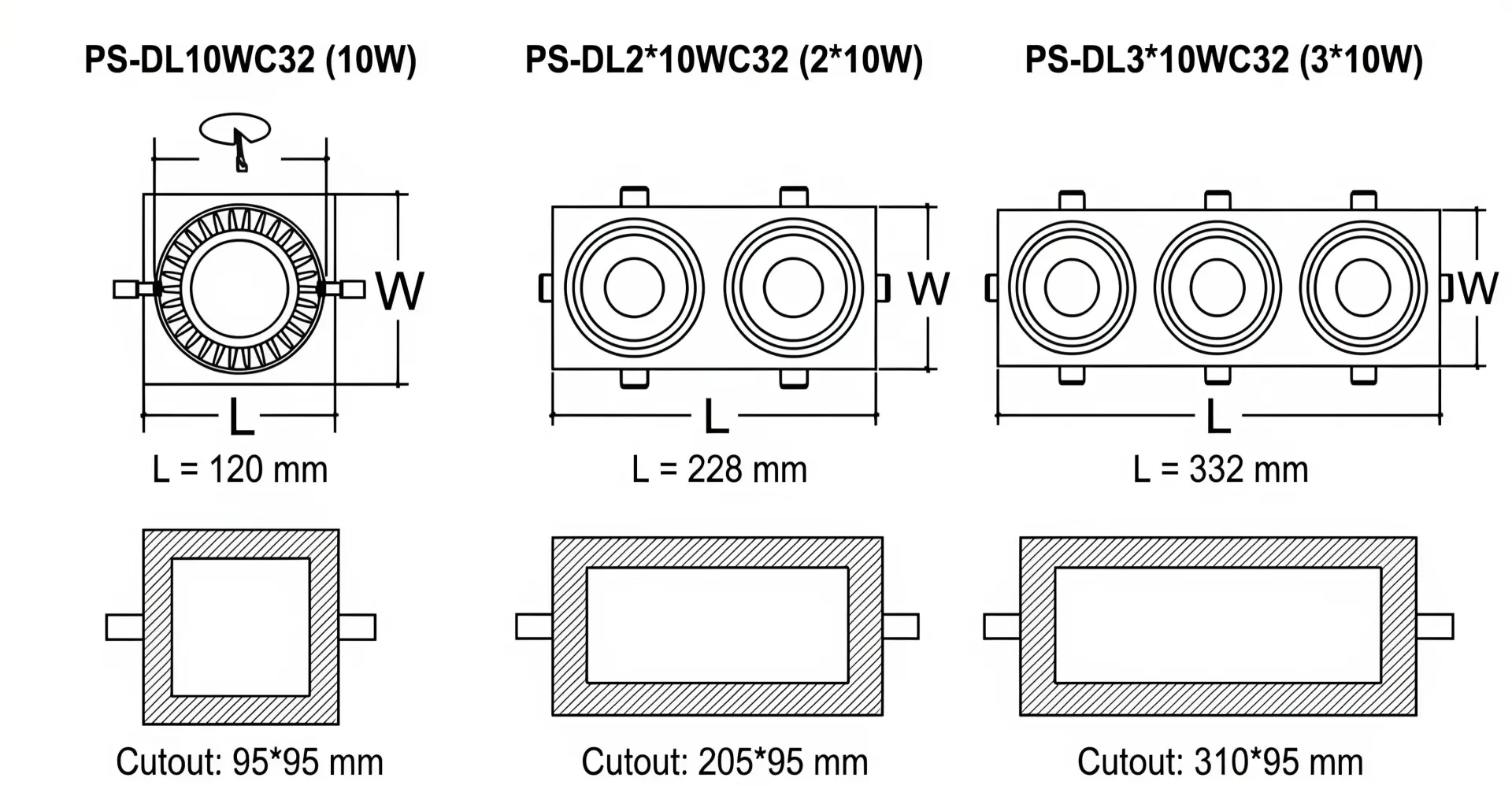

| Product size(mm) | L120*W120*H71mm | L228*W120*H71mm | L332*W120*H71mm | ||
| Input Voltage | AC220-240V 50/60Hz | ||||
| LED Type | Citizen/Luminus/Cree COB | ||||
| Power Supply | Tridonic / Osram / Philips / Boke | ||||
| Efficacy(lm/W) | 90-100 LM/W | ||||
| Beam Angle | 15° / 30° / 45° | ||||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||||
| CRI | Ra80/Ra90/Ra97 | ||||
| PF | >0.9 | ||||
| SDCM | <3 | ||||
| UGR | <19 | ||||
| Material | Die-Casting Aluminum | ||||
| THD | <15 | ||||
| IP Rate | IP20 | ||||
| Input Voltage Shock | <380VAC | ||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||||
| Switching Cycles | >100,000 switching cycles | ||||
| Withstand VoItage | 1/P-0/P:3750VAC | ||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||||
| Life-time | Nominal life-time up to 100,000H | ||||
| Operating Temperature | -20~50°C | ||||
| Operating Humidity | 5-85% RH, non-condensing | ||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||
| Warranty | 5 Years | ||||
| Q’TY(PCS)/carton | 12pcs | 8pcs | 3pcs | ||
| N.W.(KG/carton) | 15.6kg | 20.8kg | 11.7kg | ||
| Carton Size(mm) | 400*400*520mm | 6600*400*380mm | 250*510*520mm | ||
| G.W.(KG/carton) | 17.6kg | 22.8kg | 13.7kg | ||
Applications
- Retail Stores & Fashion Boutiques
Adjustable heads highlight clothing, shelves, and featured products with precise accent lighting effects.
- Museums & Exhibition Halls
Narrow beam options create focused illumination for artworks, sculptures, and display objects.
- Hotels & Restaurants
Square design matches premium interiors while providing comfortable decorative and functional lighting.
- Offices & Commercial Spaces
Multi-head configurations provide flexible lighting coverage for work areas, corridors, and reception spaces.
Faqs
-
Q.Can the lighting direction be adjusted after installation?
A.Yes. Each lighting head can be adjusted manually to change the light direction and achieve flexible accent lighting.
-
Q.Is this downlight suitable for retail display lighting?
A.Yes. The reflector optics and adjustable heads make it ideal for highlighting products, shelves, and display areas.
-
Q.What is the difference between single, double, and triple head versions?
A.The difference is the number of independent lighting modules. They provide different coverage levels while maintaining the same square design style.
-
Q.Can I choose different beam angles for different projects?
A.Yes. Douglas Series supports 15°, 30°, and 45° beam angle options for different lighting requirements.
-
Q.What ceiling depth is required for installation?
A.All models have a unified 71mm installation height, making project installation easier and more standardized.
-
Q.Which CRI option is recommended for retail applications?
A.CRI90 or CRI97 is recommended for retail, showroom, and display applications where accurate color presentation is important.
