Pstarled Zoomable Dimmable LED Track Lights provide flexible and energy-efficient lighting for supermarkets, shopping malls, and other commercial spaces. The adjustable beam and built-in dimmer allow easy control of both the illuminated area and brightness. Their durable construction and simple installation make them a practical choice for changing display and lighting requirements.
Features
20°–50° Zoomable Beam Angle: Adjusts from a concentrated narrow beam to a wide light distribution for different display and lighting requirements.
Built-In Dimming Control: The integrated dimmer allows smooth brightness adjustment without additional dimmers or control cables.
Precise Lighting Control: The adjustable beam and dimming functions help users control the illuminated area, brightness level, and visual atmosphere.
Lower Maintenance Costs: The long-lasting LED light source reduces lamp replacement frequency and ongoing maintenance expenses.
Durable Aluminum Housing: Made from high-quality die-cast aluminum for improved heat dissipation, structural strength, and long-term reliability.
Eco-Friendly Lighting Solution: Lower energy consumption and a longer operating life help reduce energy costs and environmental impact.

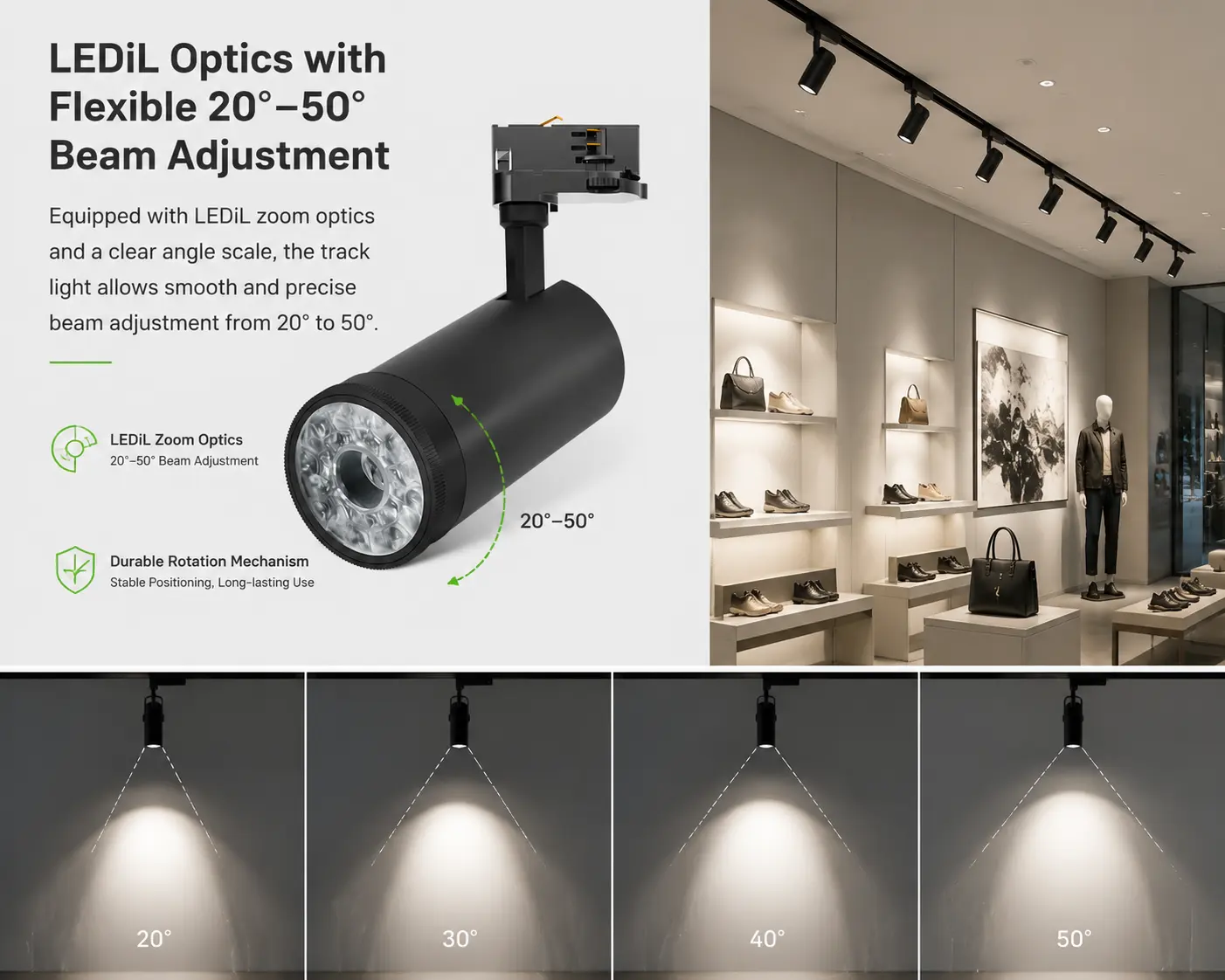

LEDiL Optics with Flexible 20°–50° Beam Adjustment
Equipped with LEDiL zoom optics and a clear angle scale, the track light allows smooth and precise beam adjustment from 20° to 50°.
Its durable rotating mechanism and reinforced shaft structure provide stable positioning while helping prevent wear or damage during repeated adjustments.
Die-Cast Aluminum for Efficient Heat Management
The adjustable-angle track light is constructed from high-quality ADC12 die-cast aluminum with a refined matte finish.
Its ventilated housing uses an air-convection cooling design to dissipate heat quickly and evenly, helping maintain stable performance and extend the fixture’s service life while preserving a clean, modern appearance.
Specification Table
Model
PS-TL-20W-A85
Power
20 W
Product Size(mm)
D89*H237 mm
Input Voltage
AC 220-240V 50/60 Hz
LED Type
Citizen/ Luminus/ Cree COB
Power Supply
Tridonic/ Osram/ Philips/ BOKE
Efficacy (lm/W)
89 lm/W
Lumen Output ±5%
3000 LM
Beam Angle
LEDil Zoomable 20°-50°
CCT(K)
2700/ 3000/ 4000/ 5000 / 5700 K
CRI
Ra 83/ 92 /97
PF
>0.9
SDCM
<3
UGR
<15
Track Adaptor
2/ 3/ 4 /6 Wires
Material
Die-casting Aluminum
THD
<15
IP Rate
IP 20
Operating Temperature
-20~50°C
Operating Humidity
5-85% RH, non-condensing
Storage Temp./ Humidity
-40~80°C, 5-85% RH, non-condensing
Dimming
Non-dimming (Default) / 1-10V / Dali / BLE
Certificate
CE/ RoHS/ CB/ TUV/ SAA/ C-Tick
Warranty
5 years
QTY/CTN Size
12 pcs / 420*320*310 mm
NW / GW
16.2 / 18 kg
Applications
Zoomable dimmable LED track lights provide flexible, energy-efficient illumination for retail stores, museums, galleries, showrooms, shopping malls, hotels, restaurants, offices, exhibitions, and other commercial spaces.
Their adjustable beam and brightness make them ideal for both accent lighting and general display lighting.
Documents
2023.11.20
0.00KB
Faqs
Q.What is the beam angle of this track light?
A.The beam angle can be smoothly adjusted from 20° to 50°. This allows users to create either focused accent lighting or wider illumination.
Q.What type of optics does the fixture use?
A.The fixture uses LEDiL zoom optics. They provide smooth beam adjustment, stable light distribution, and precise control for commercial display lighting.
Q.Is the track light dimmable?
A.Yes. The built-in dimming function allows users to adjust the brightness directly without installing additional dimming cables or external control equipment.
Q.What is the power of this zoomable track light?
A.The fixture has a rated power of 20W. It provides efficient illumination while reducing energy consumption compared with traditional halogen track lights.
Q.Which track systems are compatible with this light?
A.It is compatible with 2-wire, 3-wire, 4-wire, and 6-wire track adaptors. Please confirm your track system before placing an order.
Q.What material is used for the housing?
A.The housing is made from high-quality ADC12 die-cast aluminum. This material provides effective heat dissipation, structural strength, and long-term reliability.
Q.Can the beam angle be adjusted after installation?
A.Yes. Users can adjust the beam angle directly after installation to match changing displays, product positions, or lighting requirements.
Q.What are the main benefits of the adjustable beam?
A.The zoomable beam reduces the need to replace reflectors or lenses. It also allows one fixture to support different lighting layouts and display requirements.
Q.What is the warranty period?
A.The product is supplied with a 5-year warranty for reliable long-term commercial use.
