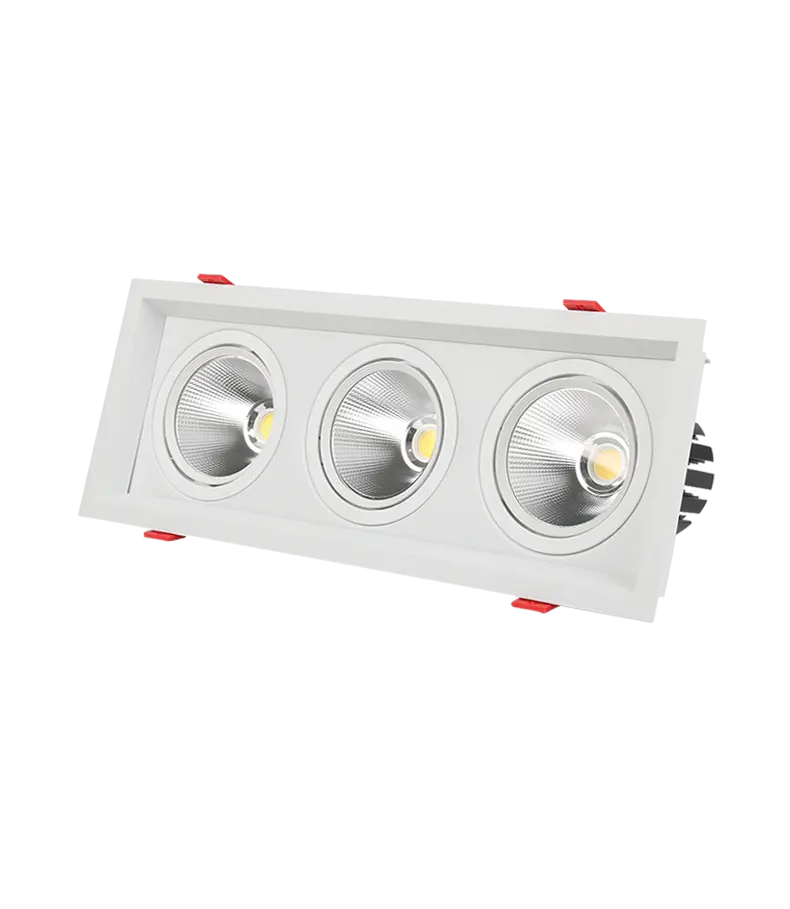

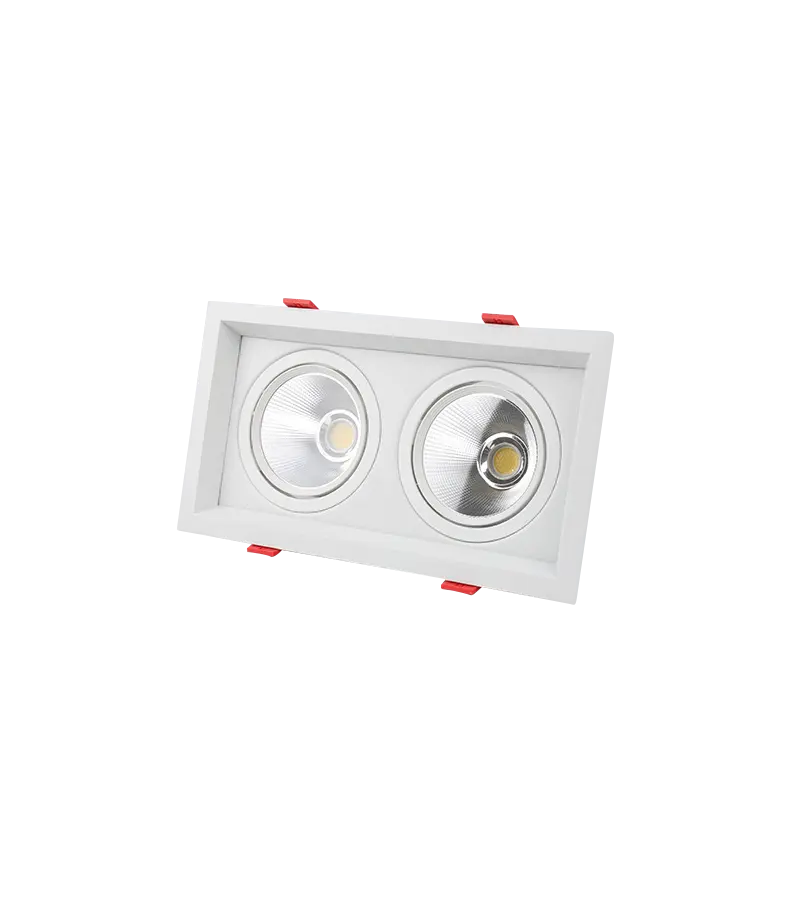

Multi Head Gimbal Led Downlight for Commercial Display Lighting
Product Code: PS-GRDL1/2/3*30W-E2
Certificate:
1/2/3*30W
Power
80/90/97Ra
CRI
IP20
IP Rating
Citizen / Luminus / Cree
LED Chip
Osram / Tridonic / BOKE
Driver
Specification Table
| Model | PS-GRDL30WE2 | PS-GRDL2*30WE2 | PS-GRDL3*30WE2 |
| Power | 30W | 2*30W | 3*30W |

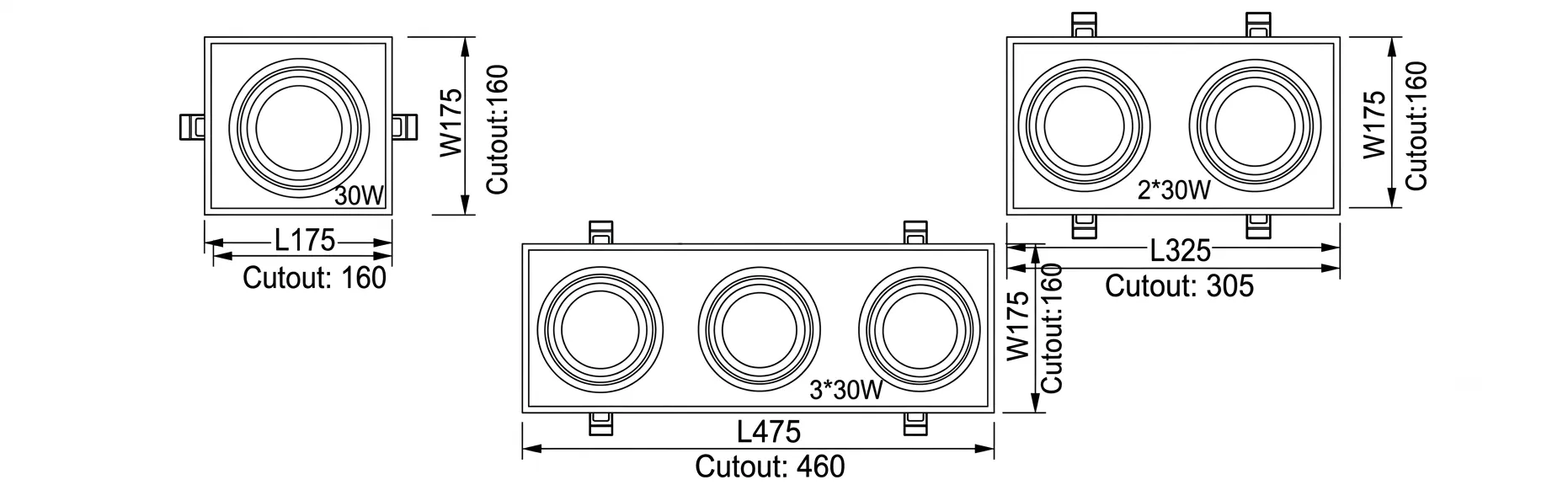

| Product size(mm) | L175*W175mm | L325*W175mm | L475*W175mm |
| Cut-out | 160*160 mm | 305*160 mm | 460*160 mm |
| Input Voltage | AC220-240V 50/60Hz | ||
| LED Type | Citizen/Luminus/Cree COB | ||
| Power Supply | Tridonic / Osram / Philips / Boke | ||
| Efficacy(lm/W) | 100LM/W | ||
| Beam Angle | 15/24/38/60° | ||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||
| CRI | Ra80/Ra90/Ra97 | ||
| PF | >0.9 | ||
| SDCM | <3 | ||
| UGR | <19 | ||
| Material | Die-Casting Aluminum | ||
| THD | <15 | ||
| IP Rate | IP20 | ||
| Input Voltage Shock | <380VAC | ||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||
| Switching Cycles | >100,000 switching cycles | ||
| Withstand VoItage | 1/P-0/P:3750VAC | ||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||
| Life-time | Nominal life-time up to 100,000H | ||
| Operating Temperature | -20~50°C | ||
| Operating Humidity | 5-85% RH, non-condensing | ||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||
| Warranty | 5 Years | ||
| Q’TY(PCS)/carton | 24pcs | 18pcs | 18pcs |
| N.W.(KG/carton) | 12kg | 12.6kg | 17.6kg |
| Carton Size(mm) | 420*380*300mm | 400*400*340mm | 460*460*360mm |
| G.W.(KG/carton) | 14kg | 14.6kg | 19.6kg |
Applications
- Fashion Retail Stores
High CRI lighting enhances fabric colors and product details. Adjustable beams create attractive displays.
- Automotive Showrooms
Directional lighting highlights vehicle details. It improves the premium feeling of showroom spaces.
- Museums and Galleries
CRI97 lighting restores artwork colors. Flexible beams create professional exhibition effects.
- Hotels and Restaurants
Warm lighting creates comfortable spaces. It improves atmosphere and interior quality.
Faqs
-
Q.What is a Multi Head Gimbal LED Downlight?
A.It is a recessed downlight with multiple adjustable lighting heads. It provides flexible directional lighting.
-
Q.Can the light direction be adjusted?
A.Yes. The gimbal design allows users to adjust the lighting angle after installation.
-
Q.Which beam angle is best for retail lighting?
A.24° and 38° are commonly used for product displays. They provide balanced spotlight effects.
-
Q.Why choose CRI97 for commercial lighting?
A.CRI97 provides better color accuracy. It helps products look more natural and attractive.
-
Q.Is Gall Series suitable for large projects?
A.Yes. It supports global certifications and is suitable for hotels, malls, and retail projects.
