Low Glare Led Downlight for Commercial Lighting
Product Code: PS-DL9-60WC20
Certificate:
9-60W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver

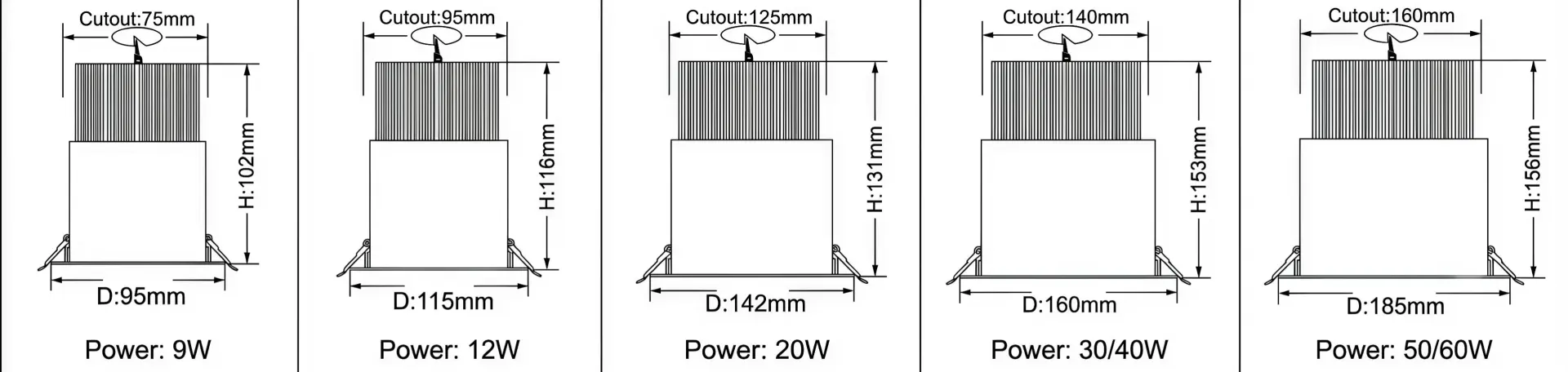

Specification Table
| Model | PS-DL9WC20 | PS-DL12WC20 | PS-DL20WC20 | PS-DL30/40WC20 | PS-DL50/60WC20 | ||
| Power | 9W | 15W | 20W | 30/40W | 50/60W | ||
| Product size(mm) | Φ95*102mm | Φ115*116mm | Φ142*131mm | Φ160*153mm | Φ185*156mm | ||
| Cut-out | 75mm | 95mm | 125mm | 140mm | 160mm | ||
| Input Voltage | AC220-240V 50/60Hz | ||||||
| LED Type | Citizen/Luminus/Cree COB | ||||||
| Power Supply | Tridonic / Osram / Philips / Boke | ||||||
| Efficacy(lm/W) | 90- 100LM/W | ||||||
| Beam Angle | 15° / 24° / 38° / 60° | ||||||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||||||
| CRI | Ra80/Ra90/Ra97 | ||||||
| PF | >0.9 | ||||||
| SDCM | <3 | ||||||
| UGR | <19 | ||||||
| Material | Die-Casting Aluminum | ||||||
| THD | <15 | ||||||
| IP Rate | IP20 | ||||||
| Input Voltage Shock | <380VAC | ||||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||||||
| Switching Cycles | >100,000 switching cycles | ||||||
| Withstand VoItage | 1/P-0/P:3750VAC | ||||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||||||
| Life-time | Nominal life-time up to 100,000H | ||||||
| Operating Temperature | -20~50°C | ||||||
| Operating Humidity | 5-85% RH, non-condensing | ||||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||||
| Warranty | 5 Years | ||||||
Applications
- Hotel & Hospitality Lighting
Provides comfortable, low-glare lighting for guestrooms, corridors, hotel lobbies, and restaurants.
- Retail & Shopping Mall Lighting
High CRI and multiple beam angles highlight products while creating an inviting shopping environment.
- Office & Commercial Lighting
Delivers uniform, low-glare illumination that improves visual comfort and workplace productivity.
- Museum & Gallery Lighting
Accurately illuminates artwork and exhibits with high CRI and precise beam control.
Faqs
-
Q.What makes this a low glare LED downlight?
A.The deep recessed reflector hides the light source and reduces direct glare, creating a more comfortable viewing experience.
-
Q.Which beam angle is best for my project?
A.Choose 15° or 24° for accent lighting. Select 40° or 60° for general lighting and wider light distribution.
-
Q.Why should I choose the Ra97 version?
A.Ra97 delivers exceptional color accuracy. It is ideal for retail stores, galleries, museums, luxury hotels, and restaurants.
-
Q.Is this downlight suitable for different ceiling heights?
A.Yes. The 9W–20W models suit standard ceilings, while the 30W–60W models perform well in high-ceiling commercial spaces.
-
Q.How does the heat sink improve performance?
A.The aluminum heat sink efficiently dissipates heat, helping maintain stable brightness and extending the LED lifespan.
-
Q.Is this product certified for international projects?
A.Yes. The Owen Series complies with CE, CB, ENEC, TUV, SAA, CCC, RoHS, and ISO standards for global commercial applications.
