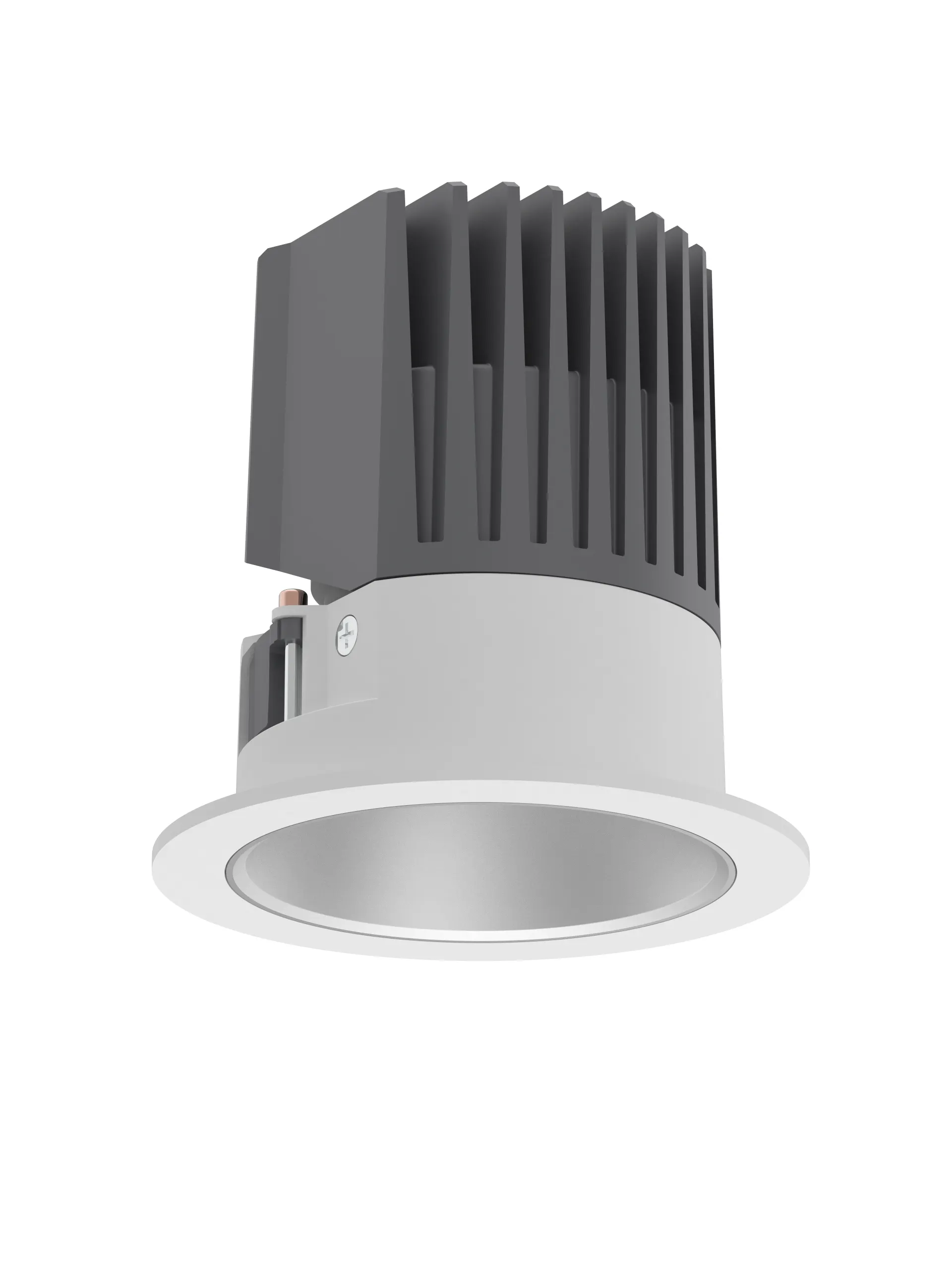

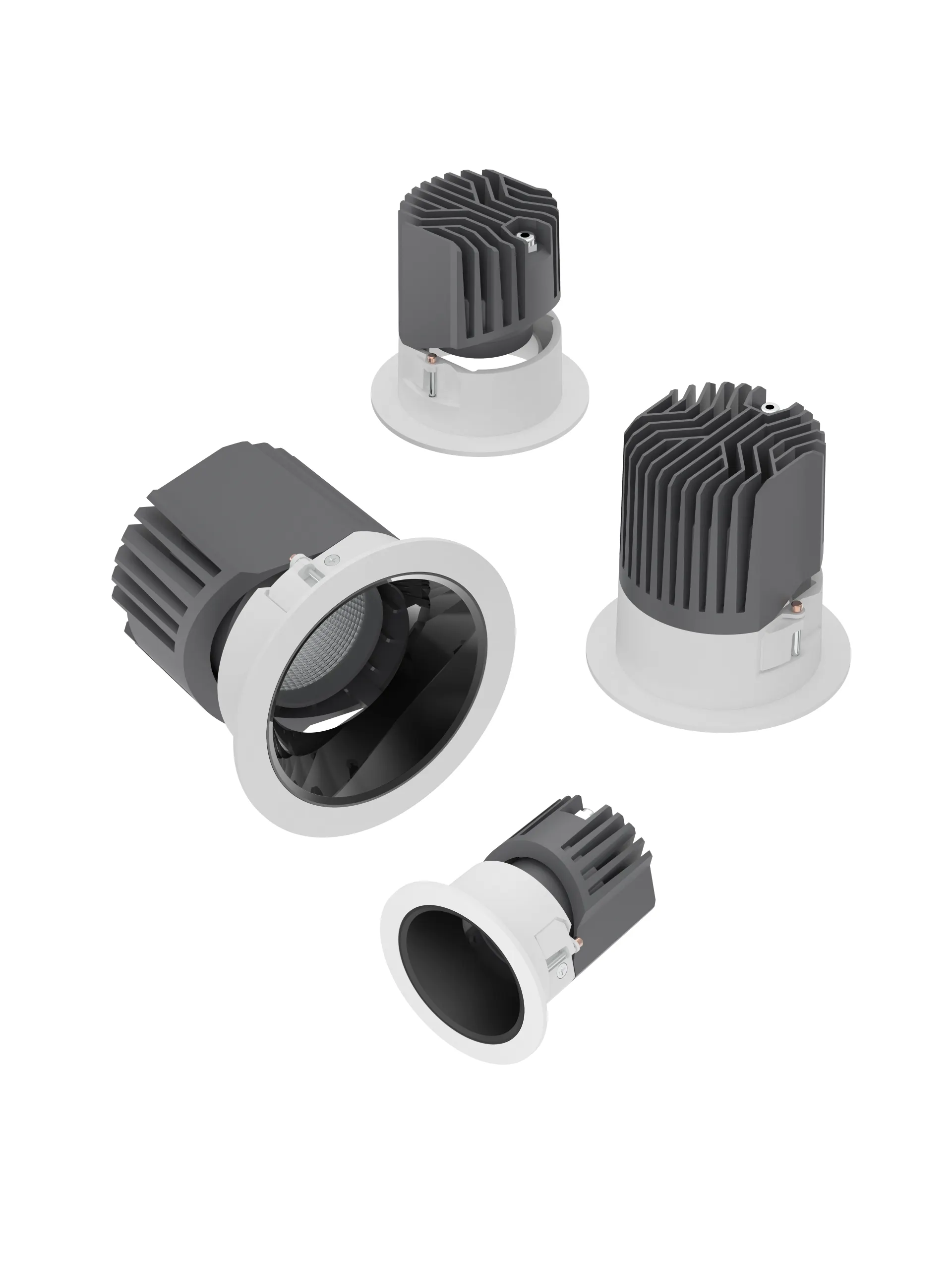

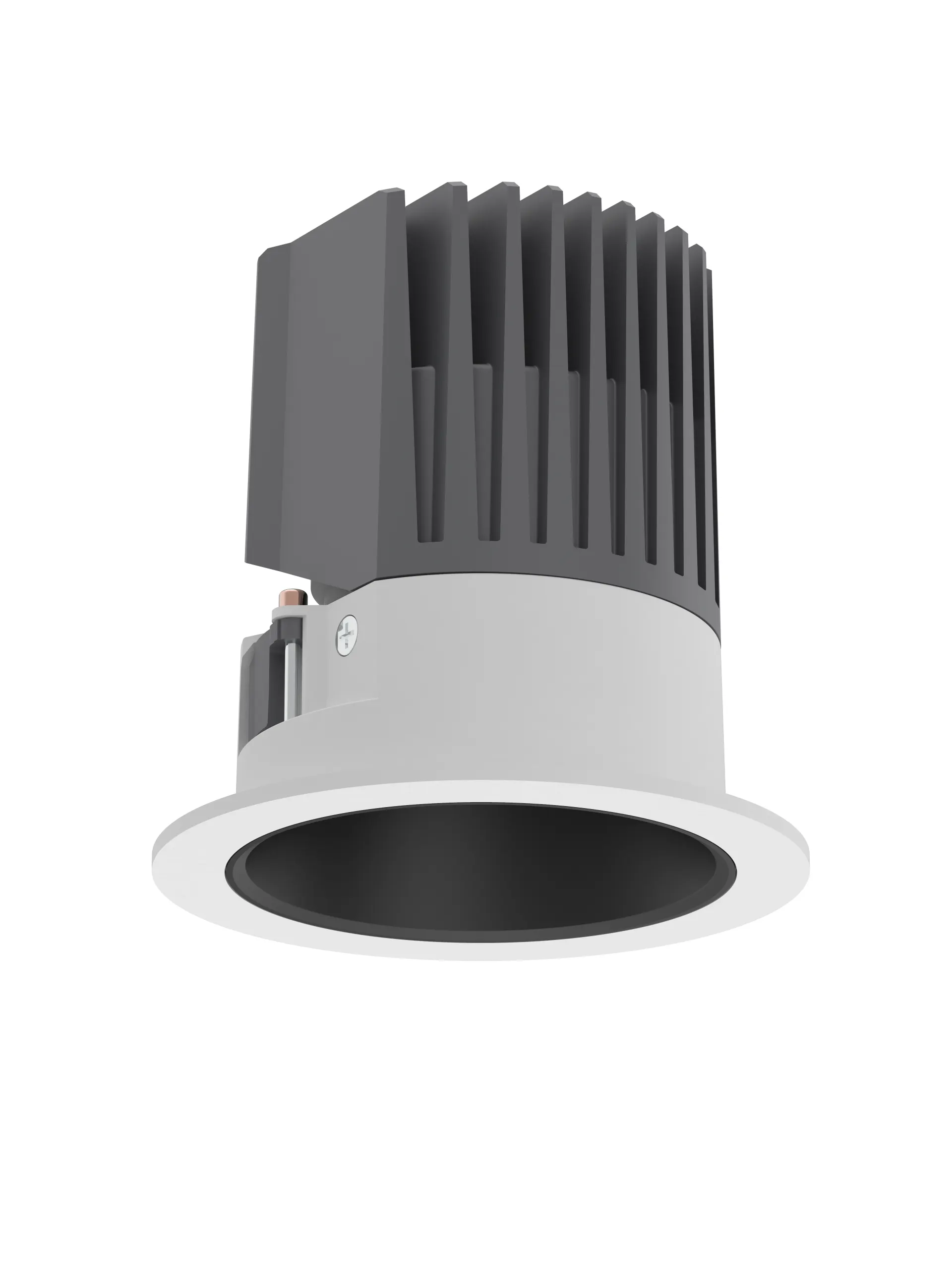

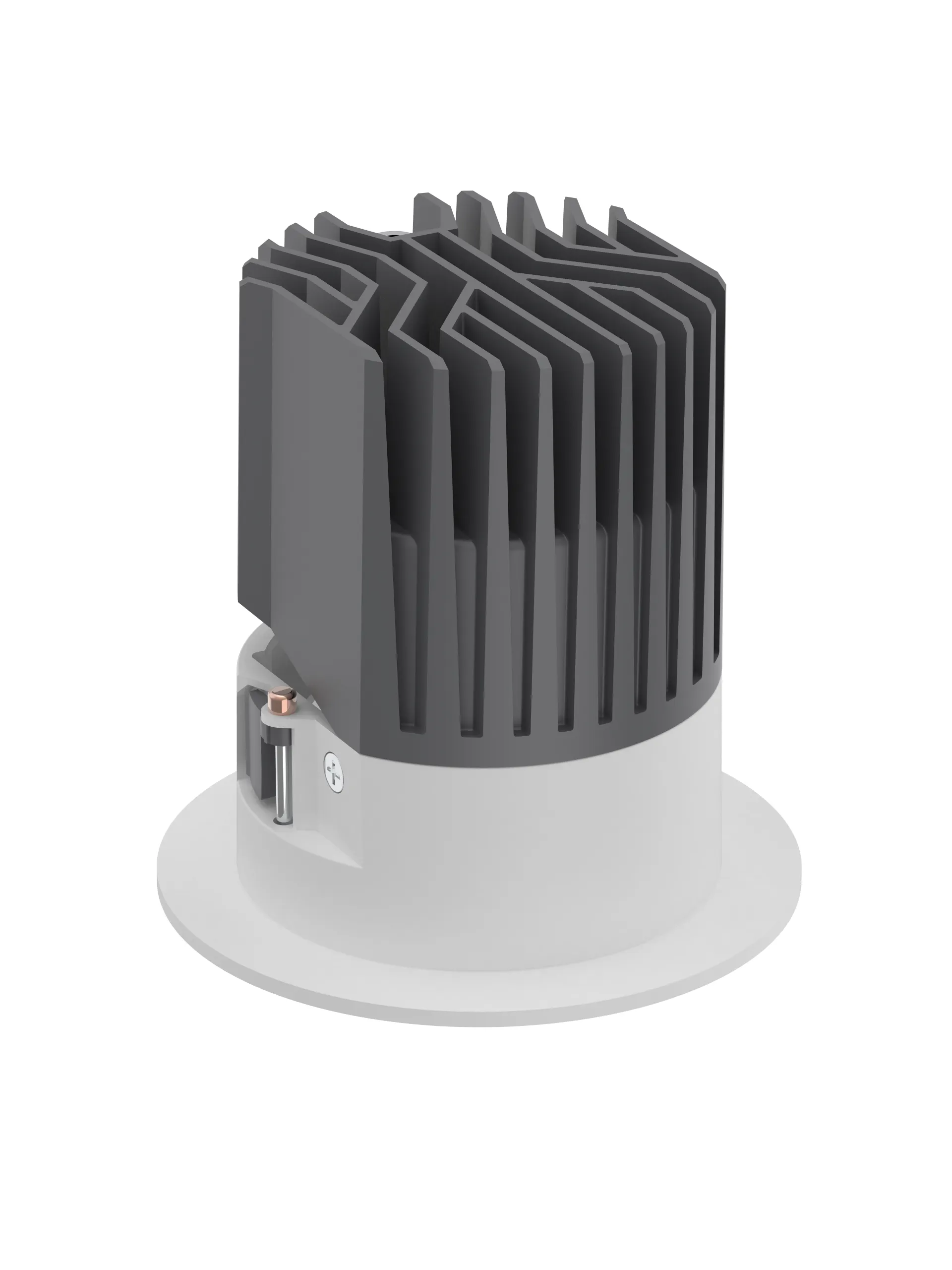

Commercial Directional Led Downlight for Retail & Architectural Lighting
Product Code: PS-DL20-100WC54
Certificate:
20-100W
Power
80/90/97Ra
CRI
IP20
IP Rating
15° / 24° / 36° / 50°
Beam Angle
220~240v
Voltage
Specification Table
| Model | PS-DL20/24WC54 | PS-DL30/40WC54 | PS-DL50/60WC54 | PS-DL80/100WC54 |
| Power | 20/24W | 30/40W | 50/60W | 80/100W |

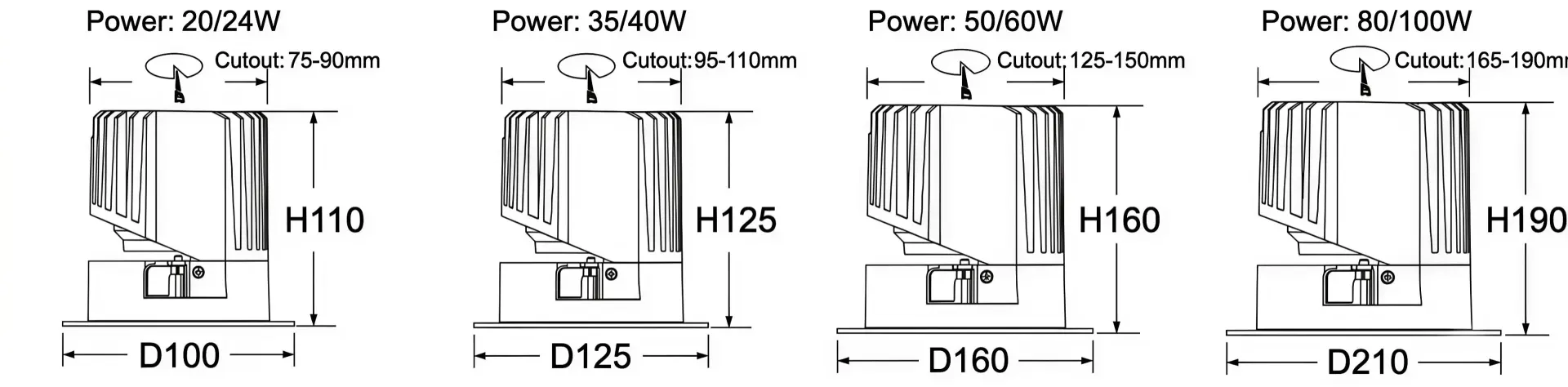

| Product size(mm) | 75-90mm | 95-110mm | 125-150mm | 165-190mm |
| Input Voltage | AC220-240V 50/60Hz | |||
| LED Type | Citizen/Luminus/Cree COB | |||
| Power Supply | Tridonic / Osram / Philips / Boke | |||
| Efficacy(lm/W) | 90-100LM/W | |||
| Beam Angle | 15° / 24° / 38° / 50° | |||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | |||
| CRI | Ra80/Ra90/Ra97 | |||
| PF | >0.9 | |||
| SDCM | <3 | |||
| UGR | <19 | |||
| Material | Die-Casting Aluminum | |||
| THD | <15 | |||
| IP Rate | IP20 | |||
| Input Voltage Shock | <380VAC | |||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |||
| Switching Cycles | >100,000 switching cycles | |||
| Withstand VoItage | 1/P-0/P:3750VAC | |||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |||
| Life-time | Nominal life-time up to 100,000H | |||
| Operating Temperature | -20~50°C | |||
| Operating Humidity | 5-85% RH, non-condensing | |||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||
| Warranty | 5 Years | |||
| Q’TY(PCS)/carton | 24pcs | 18pcs | 18pcs | 12pcs |
| N.W.(KG/carton) | 12kg | 12.6kg | 17.6kg | 23.5kg |
| Carton Size(mm) | 420*380*300mm | 400*400*340mm | 460*460*360mm | 590*460*360mm |
| G.W.(KG/carton) | 14kg | 14.6kg | 19.6kg | 25.5kg |
Applications
- Retail Stores
Adjustable directional lighting highlights merchandise, display shelves, and feature products while improving the shopping experience.
- Hotels & Hospitality
Provides comfortable and elegant lighting for guest rooms, reception areas, corridors, restaurants, and banquet halls.
- Automotive Showrooms
Enhances vehicle details and surface finishes with precise directional illumination and high color rendering.
- Museums & Galleries
Accurately illuminates artwork, sculptures, and exhibits while reducing glare and protecting visual comfort.
Faqs
-

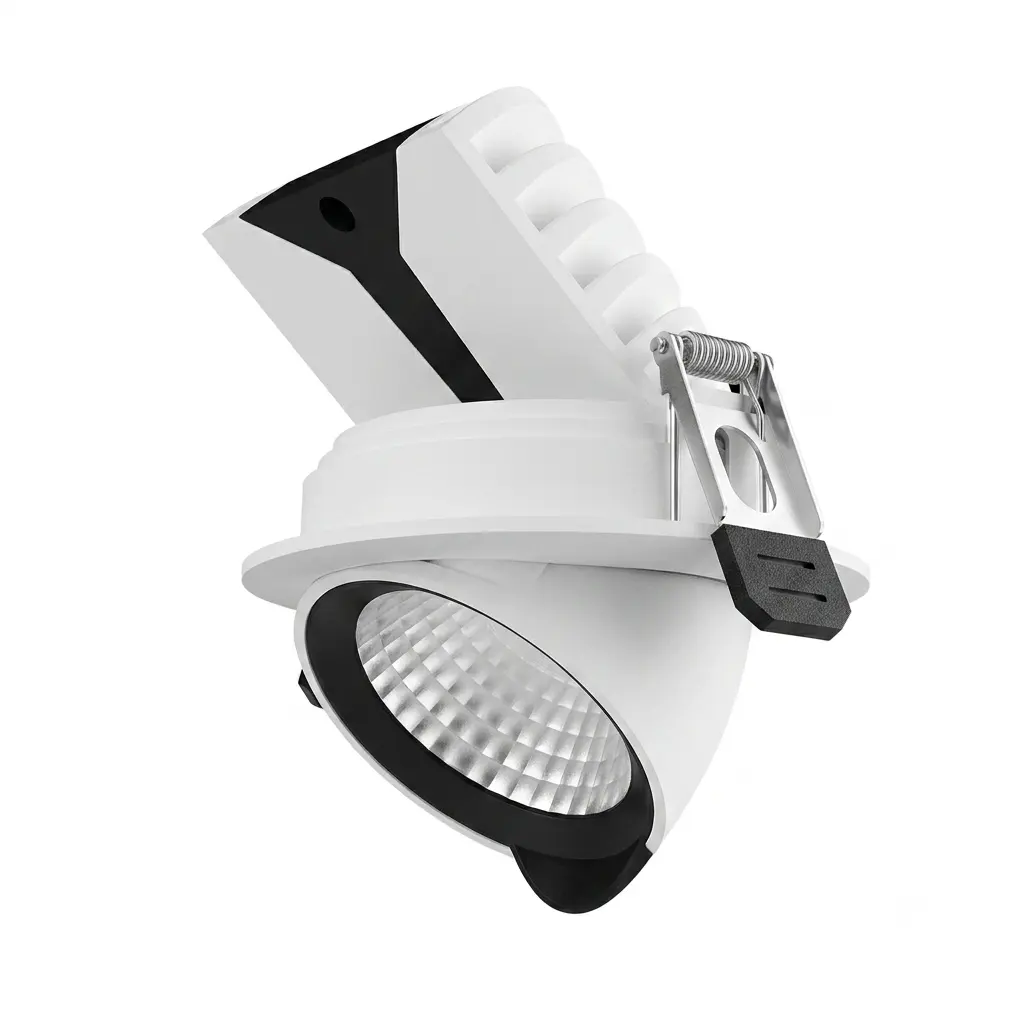

Q.What is a directional LED downlight?
A.A directional LED downlight features an adjustable light head that allows the beam to be aimed precisely at displays, artwork, or architectural features.
-
Q.Can the lighting direction be adjusted after installation?
A.Yes. The adjustable gimbal design allows the light direction to be changed at any time without removing the fixture.
-
Q.Which beam angle is best for my project?
A.15° is ideal for accent lighting, 24° and 36° suit most retail applications, while 50° provides wider general illumination.
-
Q.Which ceiling heights are supported?
A.The Green Series covers ceiling heights from approximately 2.8 meters to over 12 meters with power options ranging from 20W to 100W.
-
Q.Is this downlight suitable for commercial projects?
A.Yes. It is widely used in retail stores, hotels, museums, galleries, offices, shopping malls, and automotive showrooms.
-
Q.What CRI options are available?
A.CRI 80, 90, and 97 are available to satisfy different commercial lighting and color rendering requirements.
-
Q.What certifications does the product have?
A.The product is certified by TÜV, CE, CB, ENEC, SAA, RoHS, and CCC, making it suitable for international commercial projects.
-
Q.Are different reflector finishes available?
A.Yes. White, black, rose gold, gunmetal, silver, and other reflector finishes are available to match different interior designs.
