Deep Recessed Led Downlight With Ugr<16 for Commercial Lighting
Product Code: PS-DL10-50WC35
Certificate:
10-50W
Power
80/90/97Ra
CRI
100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL10WC35 | PS-DL12WC35 | PS-DL15WC35 | PS-DL20WC35 |
PS-DL30WC35 | PS-DL40WC35 | PS-DL50WC35 |
| Power | 10W | 12W | 15W | 20W | 30W | 40W | 50W |

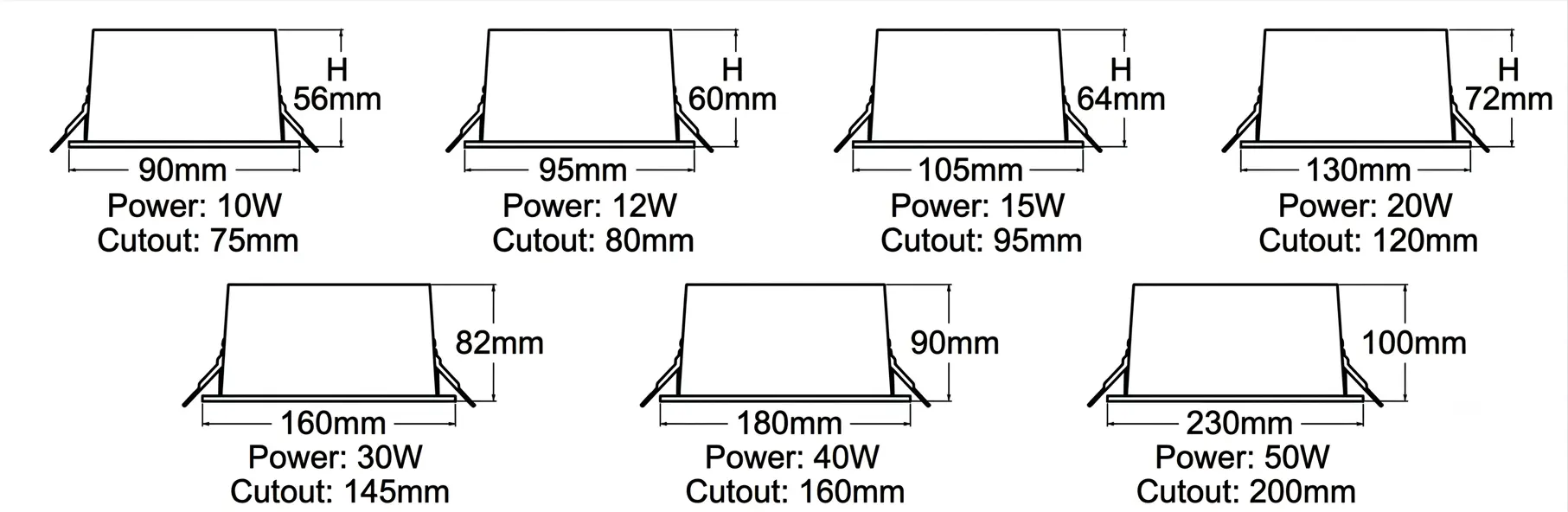

| Product size(mm) | D95*H56 | D90*H60 | D105*H64 | D130*H72 | D160*H82 | D180*H90 | D230*H100 |
| Cut-out(mm) | 75 | 80 | 95 | 120 | 145 | 160 | 200 |
| Input Voltage | AC220-240V 50/60Hz | ||||||
| LED Type | COB/SMD | ||||||
| Power Supply | Tridonic / Osram / Philips / Boke | ||||||
| Efficacy(lm/W) | 100LM/W | ||||||
| Beam Angle | 13°/24°/38°/60° | ||||||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||||||
| CRI | Ra80 / Ra90 / Ra97 | ||||||
| PF | >0.9 | ||||||
| SDCM | <3 | ||||||
| UGR | <19 | ||||||
| Material | Die-Casting Aluminum | ||||||
| THD | <15 | ||||||
| IP Rate | IP20 | ||||||
| Input Voltage Shock | <380VAC | ||||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||||||
| Switching Cycles | >100,000 switching cycles | ||||||
| Withstand VoItage | 1/P-0/P:3750VAC | ||||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||||||
| Life-time | Nominal life-time up to 100,000H | ||||||
| Operating Temperature | -20~50°C | ||||||
| Operating Humidity | 5-85% RH, non-condensing | ||||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||||
| Warranty | 5 Years | ||||||
Applications
- Luxury Hotels
Create comfortable, low-glare lighting for guest rooms, corridors, lobbies, and reception areas while enhancing the premium interior atmosphere.
- Retail Stores
Highlight merchandise with high CRI lighting and precise beam control to improve product presentation and customer experience.
- Office Buildings
Provide comfortable, uniform illumination for meeting rooms, corridors, reception areas, and open office spaces with reduced visual fatigue.
- Museums & Art Galleries
Deliver accurate color reproduction and focused accent lighting to emphasize artwork and exhibits without distracting glare.
Faqs
-
Q.What makes a deep recessed LED downlight different from a standard downlight?
A.What makes a deep recessed LED downlight different from a standard downlight?
-
Q.Which beam angle should I choose?
A.13° is ideal for accent lighting, 24° and 38° are suitable for display and retail lighting, while 60° is recommended for general illumination.
-
Q.Is this downlight suitable for high ceilings?
A.Yes. The 40W and 50W models are designed for high-ceiling commercial applications such as hotel lobbies, shopping malls, airports, and exhibition centers.
-
Q.Can I choose different CRI options?
A.Yes. The Evan Series is available with CRI 80, CRI 90, and CRI 97 to meet different commercial lighting requirements.
-
Q.What color temperatures are available?
A.It supports 2700K, 3000K, 3500K, 4000K, and 5000K to suit various lighting environments.
-
Q.Which certifications does this product have?
A.The product is certified by CE, CB, ENEC, TÜV Rheinland, SAA, RoHS, CCC, and ISO, making it suitable for international commercial projects.
-
Q.Is it suitable for retail and hospitality projects?
A.Yes. Its low glare, high CRI, and precision optics make it an excellent choice for hotels, retail stores, restaurants, galleries, and commercial buildings.
-
Q.Can different wattages maintain the same design style?
A.Yes. The complete product family offers multiple wattages and cutout sizes while maintaining a consistent appearance throughout the project.
